3930
3930
Hioki

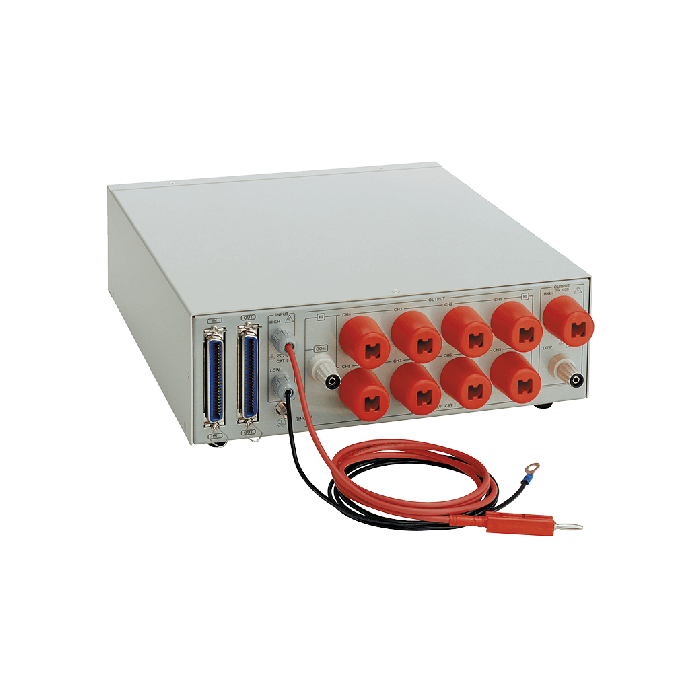

High Voltage Scanner - 5kV AC/DC
This product is available in 5-7 weeks
5kV AC/DC High Voltage Scanner that Supports Automatic Multi-point Testing
The Hioki 3930 is a passive auxiliary tester that is connected to and controlled by the Hioki 3153 automatic insulation/withstanding tester or a sequencer, and is designed to safely permit testing of multiple points with a minimum of connection changes.
Key Features
- Output of the input high voltage from a user-selected channel
- 8 ch per unit (single mode), with up to 32 ch (4 connected units)
- Isolated high-voltage I/O, control signal lines, and power supply
- Control using the 3153 program function or with a standard sequencer
Contact our expert team
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
Price
£3,175.82
| Attribute | Value |
|---|---|
| Power Supply | VSCV 24 V DC, ±10% (applied using the control signal input connector), 12 VA max. |
| Dimensions and Weight | 316 mm (12.44 in) W × 100 mm (3.94 in) H × 350 mm (13.78 in) D, 4.2 kg (148.1 oz) |
| Accessories | Control input connector connection cable ×1, H.V. Test Lead 9615-01 (red) ×8, H.V. Test lead (black) ×1, Grounding cable ×1, Instruction manual ×1 |
| Operation Modes |
Multi-mode: Scanning of user-selected points for high 4 ch / low 4 ch |
| Rated Voltage Used | 5 kV AC / 5 kV DC |
| Operation Indications | Lamps light up when power is supplied and when a specified channel is operating |
| Max. Open and Closed Voltage | 5000 V DC, 5000 V AC |
| Max. Open and Closed Current | 1.0 A (open and closed capacity: 50 W) |
| Contact Point Indirect Contact Resistance | 500 mΩ or less, with 1 mA AC |
| Contact Point Max. Capacity | 50 W |
| Time | Operation time: 6 ms or less, Recovery time: 6 ms or less |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
