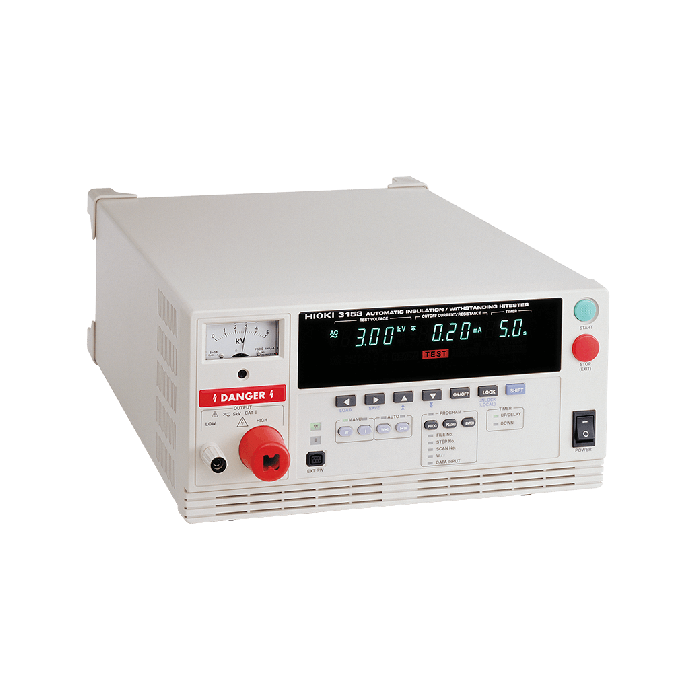

Automatic Insulation/Withstanding HiTester

All-in-one Model that Combines Withstand Voltage and Insulation Resistance (AC/DC)

The Hioki electrical safety testers are designed for insulation resistance and voltage withstand testing of electrical devices and components according to various safety standards. The 3153 is an automatic insulation and AC/DC voltage withstanding tester that fully supports automated testing.

Key Features

  • Programmable insulation (50 V to 1200 V DC) and dielectric strength (AC/DC) testing
  • Program up to 32 files of test types, test points (50 steps), and measurement settings
  • Optional scanner for multipoint automatic testing
  • Uses the PWM method to generate accurate test voltages that do not depend on the supply voltage
  • Ramp timer function for increasing or decreasing the applied voltage during dielectric strength testing at user-specified times
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply 100 to 120 V, 200 to 240 V AC, (50/60 Hz), 1000 VA max.
Functions

Program up to 32 files of 50 step test settings.
10 sets each of dielectric strength and insulation test settings, hold, buzzer

Dimensions and Weight 320 mm (12.60 in) W × 155 mm (6.10 in) H × 480 mm (18.9 in) D, 18 kg (634.9 oz)
Measurement Range

Withstanding Test: 10 mA (0.01 mA resolution), 100 mA (0.1 mA resolution)

Insulation Test: 0.10 to 9999 MΩ, 4 ranges, ± 4 % rdg. (representative values for 0.5 MΩ to 1,000 MΩ)

Accessories H.V. Test Lead 9615 (high voltage side and return, 1 each) ×1, Power cord ×1, Instruction manual ×1, Spare fuse ×1
Determination Method

Withstanding Test: Window comparison (digital settings)

Insulation Test: Window comparison (digital settings)

Testing Voltage Withstanding Test: 0.2 kV to 5.00 kV AC, 500 VA (max. 30 minutes), 0.2 kV to 5.00 kV DC, 50 VA (continuance)
Voltage Setting Withstanding Test: Digital setting (0.01 kV setting resolution)
Waveform Frequency Withstanding Test: Sine wave (5% or less distortion, unloaded), 50/60 Hz selectable
Current Measurement Withstanding Test: 0.01 mA to 100.0 mA, Average rectified display (Digital)
Rated Testing Current Insulation Test: 1 mA, Short-circuit current: 200 mA or less
Setting Range 0.3 to 999 s
Ramp Delay Testing voltage ramp-up, or down, Insulation test delay: 0.1 to 99.9 s
Monitor Function Output voltage, detected current, measured resistance, Refresh rate: 2 times/s
Rated Testing Voltage Insulation Test: 50 to 1,200 V DC (in 1 V steps)
More Information
Attribute Value
Data Sheet Click here to view
