Hioki SW2001 High Voltage Multiplexer | APC Technology Group

SW2001

SW2001

Hioki

High Voltage Multiplexer

Durable multiplexer for comprehensive motor testing systems

Ideal for building systems that combine high-voltage testing and 4-terminal low-voltage measurement

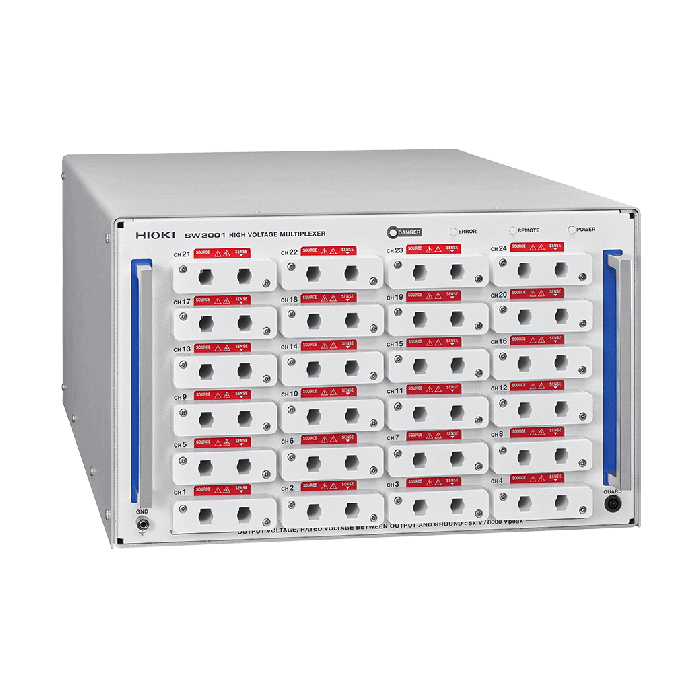

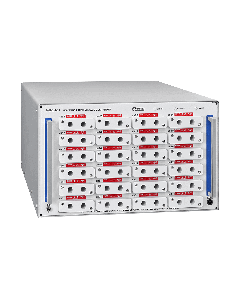

The SW2001 High Voltage Multiplexer is designed to connect multiple testers for six different tests, allowing safe and seamless switching between high-voltage and 4-terminal low-voltage testing. (It is designed to connect testers for the winding resistance test, inductance test, insulation resistance test, hipot test, surge test, and partial discharge test [ACPD and Surge PD].)

The multiplexer minimizes risk of damage to low-voltage test equipment by effectively mitigating the impact of stored energy in windings during high voltage testing such as hipot tests and insulation resistance tests. The robust multiplexing design ensures measurement accuracy and reduces the need for frequent replacements of high-voltage relays.

Key Features

  • A single multiplexer that lets you consolidate six different tests
  • Safe switching between high-voltage testing and 4-terminal low-voltage measurement
  • Reliable multiplexing design with extended operational lifespan
  • Guaranteed measurement performance and high durability
  • Up to 24 channels significantly reduce connection man-hours and test time
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply

Rated supply voltage: 100 to 240 V AC
Rated power: 120 VA

Interfaces LAN, USB, EXT. I/O
Functions Channel switching, interlock, channel delay, settings backup, panel function, communications settings mode switching, protective discharge function, accelerated discharge function
Dimensions and Weight

Approx. 439.2 mm (17.29 in.) W × 265.9 mm (10.47 in.) H × 770 mm (30.31 in.) D (excluding protruding parts)

SW2001-04: approx. 20.5 kg (723.1 oz.); SW2001-08: approx. 22.5 kg (793.7 oz.); SW2001-16: approx. 27.0 kg (952.4 oz.); SW2001-24: approx. 31.5 kg (1111.1 oz.)

(All figures do not include weight from factory options ST9200/ST9201.)
Add 1.2 kg (42.3 oz.) for each ST9200 and add 139 g (4.9 oz.) for each ST9201.

Accessories Power cord × 1, operating precautions × 1, startup guide × 1, support feet for installation × 4, EXT I/O connector × 1, connector for disengaging EXT I/O interlock × 1
Input Channels

2 channels of high-voltage, 2-terminal input: insulation and withstanding voltage tester input, impulse winding tester input
2 channels of low-voltage, 4-terminal input: LCR meter input, resistance meter input

Output Channels

CH1 to CH4 (SW2001-04), CH1 to CH8 (SW2001-08), CH1 to CH16 (SW2001-16), CH1 to CH24 (SW2001-24)
SOURCE terminal (or 2-terminal output terminals) and SENSE terminal for each channel

Partial Discharge Sensor Output

AC voltage monitoring, AC partial discharge current, impulse partial discharge current
(Current output is available only when equipped with current sensor ST9200 or ST9201 which are options that must be specified when ordering.)
(Each is output through a BNC terminal.)

Maximum Input Voltage

Between high-voltage 2-terminal input and withstand voltage tester input terminal: 5 kV AC, 5 kV DC, 7.07 kV peak
Between high-voltage 2-terminal input and impulse input terminal: 8 kV peak (impulse)
Between low-voltage 4-terminal input and LCR meter input terminal or resistance meter input terminal: 30 V AC rms, 60 V DC, 42.4 V peak

Rated Output Voltage 5 kV AC rms, 5 kV DC, 8 kV peak (impulse)
Maximum Rated Terminal-to-Ground Voltage Between high-voltage 2-terminal

Between high-voltage 2-terminal input and withstand voltage tester input terminal: 5 kV AC, 5 kV DC, 7.07 kV peak
Between high-voltage 2-terminal input and impulse input terminal: 8 kV peak (impulse)
Between low-voltage 4-terminal input and LCR meter input terminal or resistance meter input terminal: 30 V AC rms, 60 V DC, 42.4 V peak

and withstand voltage tester input terminal: 5 kV AC, 5 kV DC, 7.07 kV peak Between high-voltage 2-terminal input and impulse input terminal: 8 kV peak (impulse) Between low-voltage 4-terminal input and LCR meter input terminal or resistance meter input terminal: 30 V AC RMS , 60 V DC, 42.4 V peak
Maximum Allowable Impulse Current 100 A peak
Primary Circuit Relay Service Life Open/close cycles: 5 million or more (reference value, not guaranteed)
More Information
Attribute Value
Data Sheet Click here to view
