3D Plus

1.8V, 2 Gbit DDR2 SDRAM organised as 128M x16, based on 128M x8

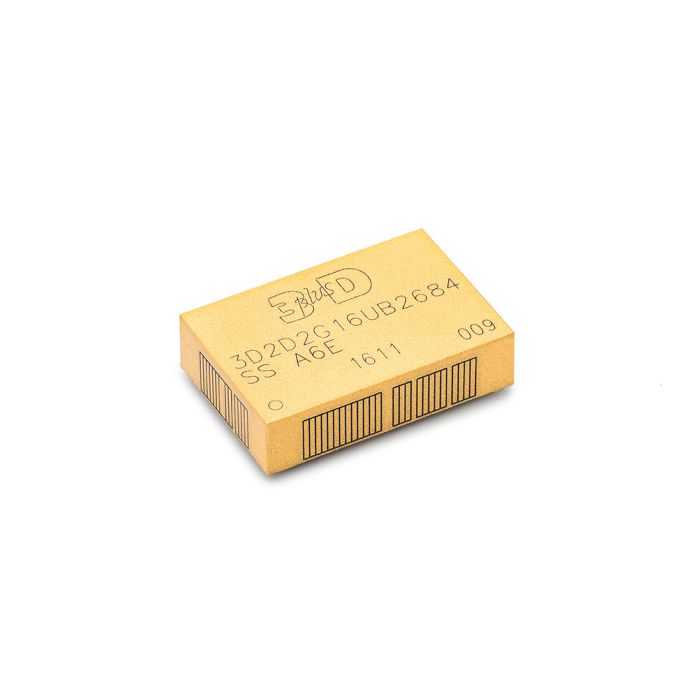

main product photo

The 3D2D2G16UB2684 is a high-speed highly integrated DDR2 Synchronous Dynamic Random Access Memory containing 2,147,483,648 bits with the 16-bit interface. It is particularly well suited for use in high reliability, high performance and high density system applications, such as solid state mass recorder, server or workstation. The 3D2D2G16UB2684 is packaged in a 95-ball BGA.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Features
  • SSTL 18 interface
  • Burst read/write operation and burst read/single write operation capability.
  • Burst length (BL): 4, 8
  • Burst type (BT):
    • Sequential (BL = 4, 8)
    • Interleave (BL = 4, 8)
  • Programmable #CAS latency (CL): 3, 4, 5
  • Auto prechange option for each burst access
  • Refresh cycles: 8192 refresh cycles/64ms
  • 2 variations: auto and self refresh
  • Available with screening option for high reliability application (Space, etc…)
Product Type DDR2 SDRAM
Memory 2Gb
Power Supply +1.8 ± 0.1V
Pin Assignment BGA 95 - Pitch 1.27 mm, package AW2
Temperature Range
  • 0°C to +70°C
  • -40°C to +85°C
  • -40°C to +105°C
More Information
Attribute Value
Data Sheet Click here to view
