3DEE1M08VS1192

3DEE1M08VS1192

3D Plus

3.3V, 1 Mbit Memory Module: 8-bit bus width, EEPROM based on 128K x8

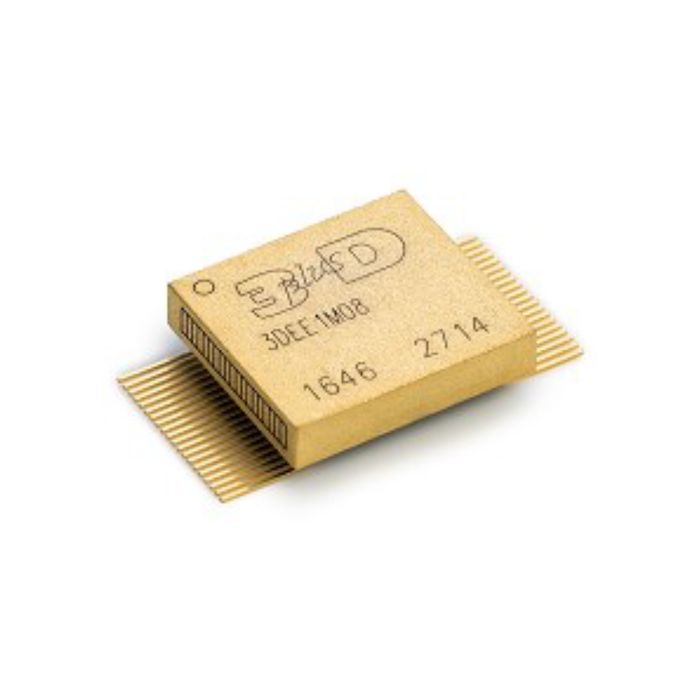

main product photo

The 3DEE1M08VS1192 is 1 Mbit EEPROM (Electrically Erasable and Programmable ROM) organised as a single bank of 128K x 8 bits. Using high performance and high reliability CMOS technology combined with 3D PLUS patented stacking technology, this EEPROM memory is well suited for use in high reliability, high performance system applications. The module packaged in a SOP 40 is available for Commercial, Industrial or Military temperature range. It is also available with screening options up to space grade level.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Product Type EEPROM
Data_Sheet

To request a datasheet, contact a member of our high-reliability team [email protected]
Memory
Power Supply
Pin Assignment SOP 40 - Pitch 0.50 mm
Temperature Range
  • 0°C to +70°C
  • -40°C to +85°C
  • -55°C to +125°C
Features
  • Memory Cell Array 128K x8 bits
  • Access time: 250 ns (Max)
  • On chip latches: address, data, #CE, #OE, #WE
  • Automatic byte write: 15 ms (Max)
  • Automatic page write (128 bytes): 15 ms (Max)
  • Power dissipation:
    • Active: 20 mW/Hz (Typ)
    • Standby: < 100 µW (Max)
  • Command/Address/Data Multiplexed I/O Port
  • Data polling and RDY/#BUSY
  • Endurance: 100k Program/Erase Cycles with ECC
  • Data Retention: 10 Years
  • Software data protection
  • Write protection by #RES pin
  • Available with screening options up to grade S
  • ITAR free
