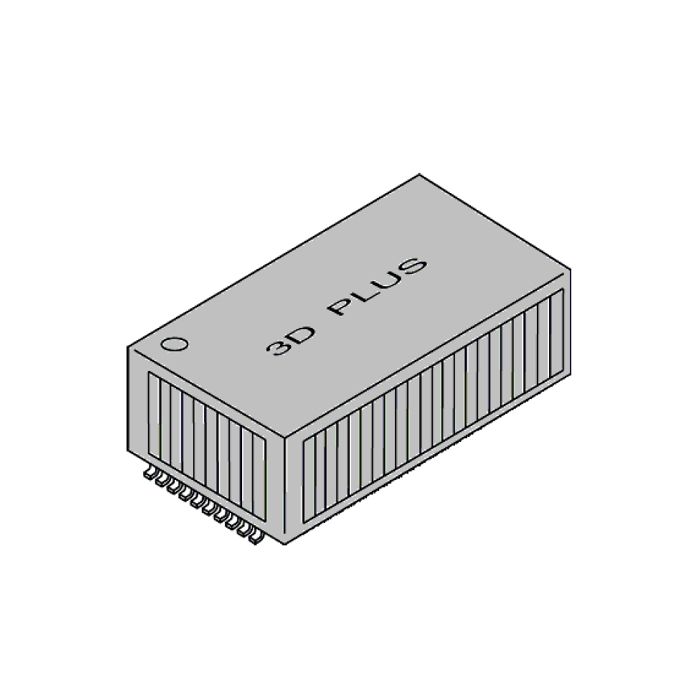

3DEE4M08CS4029

3D Plus

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute	Value
Product Type	EEPROM
Data_Sheet	To request a datasheet, contact a member of our high-reliability team [email protected]
Memory	4Mb
Power Supply	5V ± 10%
Pin Assignment	SOP 40 - Pitch 0.50 mm
Temperature Range	0°C to +70°C -40°C to +85°C -55°C to +125°C
Features	Access time: 150 ns (Max) On chip latches: address, data, #CE, #OE, #WE Automatic byte write: 10 ms (Max) Automatic page write (128 bytes): 10 ms (Max) Power dissipation: Active: 20 mW/Hz (Typ) Standby: 0.5 mW (Max) Command/Address/Data Multiplexed I/O Port Data polling and RDY/#BUSY Reliable CMOS with MNOS cell technology 10⁴ erase/write cycles (in page mode) Data Retention: 10 Years Software data protection Write protection by #RES pin Available with screening option for high reliabilityapplications

More Information
Attribute	Value
Data Sheet	Click here to view
