3DSD1G08VS2685

3DSD1G08VS2685

3D Plus

3.3 V, 1 Gbit SDRAM organised as 128M x8, based on 64M x8

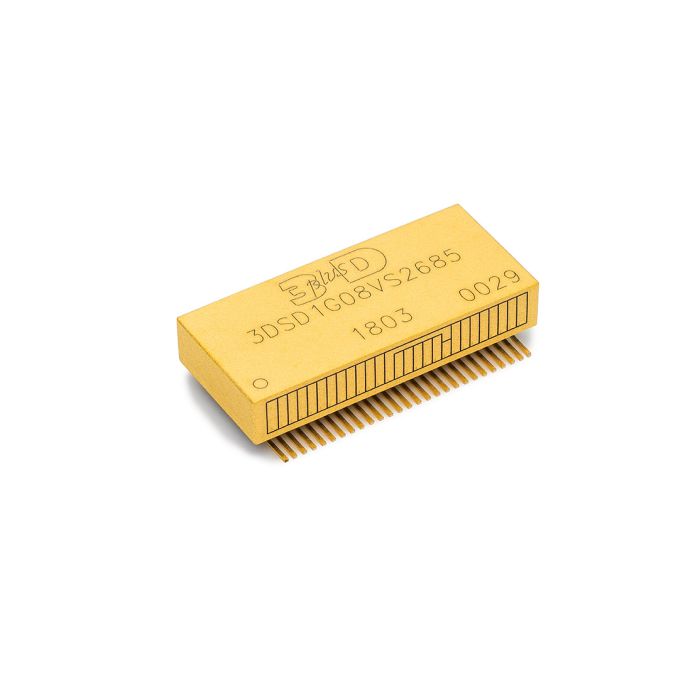

main product photo

The 3DSD1G08VS2685 is a high-speed highly integrated Synchronous Dynamic Random Access Memory containing 1,073,741,824 bits. It is organised with two banks of 512 Mbit. Each bank has an 8-bit interface and is selected with specific #CS, CKE and CLK.

It is particularity well suited for use in high reliability, high performance and high density system applications, such as solid state mass recorder, server or workstation. The 3DSD1G08VS2685 is packaged in a 54 pin SOP.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Product Type SDRAM
Data_Sheet

To request a datasheet, contact a member of our high-reliability team [email protected]
Memory
Power Supply
Pin Assignment SOP 54 - Pitch 0.80mm
Temperature Range
  • 0°C to +70°C
  • -40°C to +85°C
  • -40°C to +105°C
Features
  • Fully synchronous; all signals registered on positive edge of system clock
  • Internal pipelined operation; column address can be changed every clock cycle.
  • Programmable burst length; 1, 2, 4, 8 or full page
  • Auto precharge includes concurrent auto precharge, and auto refresh modes
  • Self refresh modes
  • LVTTL-compatible inputs and outputs
  • Available with screening option for high reliability application (Space, etc…)
More Information
Attribute Value
Data Sheet Click here to view
