ETS-Lindgren
5600 HP Series Tabletop RF Test Enclosure - Small (14 x 20 x 10 in)

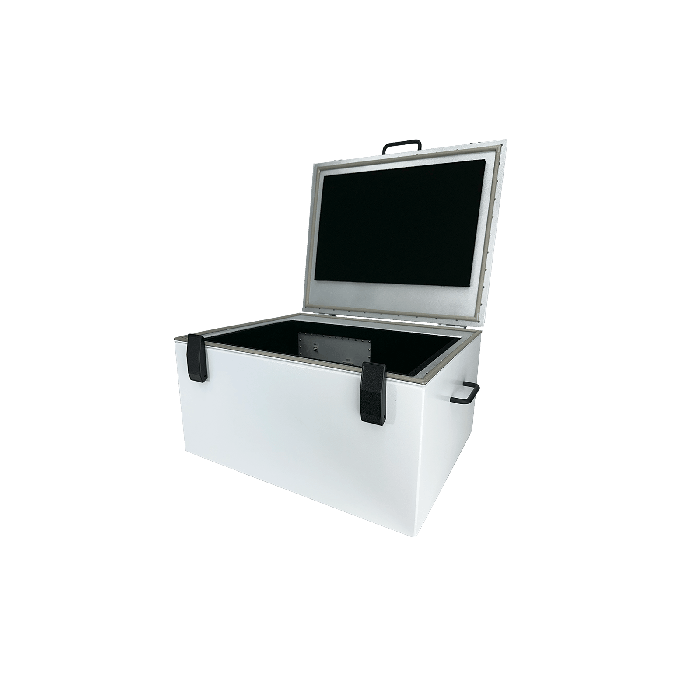

Model 5601 HP Tabletop RF Test Enclosure
The Model 5601 HP is the high-performance variant of the compact 5601 tabletop enclosure, featuring dual-wall welded aluminium construction to deliver 100 dB+ of RF isolation from 300 MHz to 18 GHz. Designed for applications demanding higher shielding effectiveness, the 5601 HP is suited to development, production, and QA testing of wireless devices including Wi-Fi, Bluetooth, Zigbee, RFID, 5G, and IoT technologies.
The interior is lined with ETS-Lindgren microwave absorber to suppress reflections, and the dual-layer door features a precision braid-over-foam RF seal rated to more than 50,000 cycles. Interchangeable I/O connector panels offer flexible connectivity options including SMA, DB9, USB 2.0, Ethernet (PoE), DC power, and AC power.
Key Features:
- 100 dB+ RF Isolation from 300 MHz to 6 GHz
- Compact Tabletop Format: 35.56 x 50.8 x 25.4 cm (14 x 20 x 10 in)
- Dual-Wall Welded Aluminium Construction for Increased Performance
- Microwave Absorber Lined Interior
- Dual-Layer Door with Braid-Over-Foam RF Seal Rated to 50,000+ Cycles
- Interchangeable I/O Connector Panels (5 Options Available)
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range | 300 MHz to 18 GHz |
| Configuration | Tabletop |
| Shielding effectiveness | ≥100 dB @ 300 MHz to 3 GHz; ≥90 dB @ 3 GHz to 6 GHz; ≥80 dB @ 6 GHz to 18 GHz |
| Outer dimensions ( Lx W x H) | 35.56 cm x 50.8 cm x 25.4 cm (14 in x 20 in x 10 in) |
