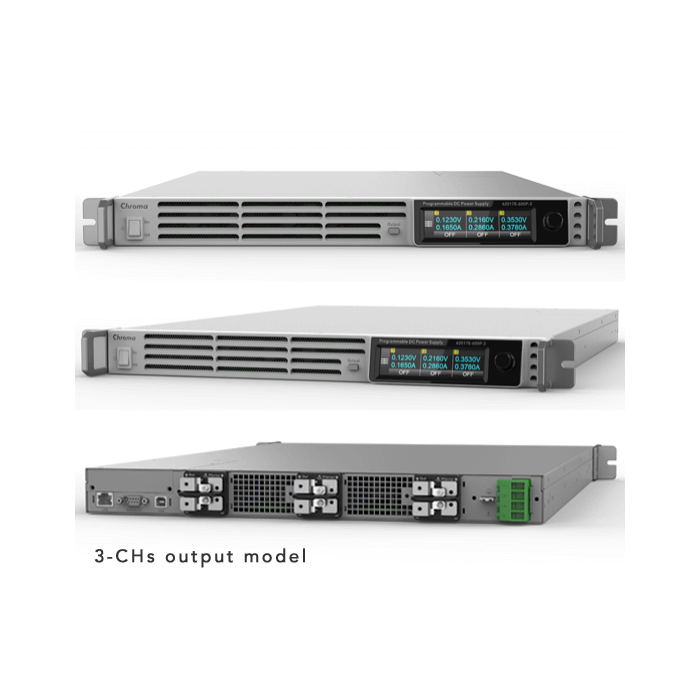

62017E-600-3

Three-Channel 1,7kW Programmable DC Power Supply

The Chroma 62000E Series of programmable DC power supplies offers single-channel models with power ratings of 1.7kW, 3.4kW, and 5kW, and three-channel models rated at 1.7kW, all housed in a compact 1U chassis featuring industry-leading power density. The 54 different models include both fixed-range and auto-range options, with current ratings up to 150A and voltage ratings up to 1200V.

Key Features

• Voltage rating: Up to 1200V
• Current rating: Up to 150A
• Single-output models: 1.7kW
• Multi-output models: 3x1.7kW channels in 1U
• Master/slave parallel up to 20kW
• Fixed or Auto-ranging output models
• Auto sequence programming
• CV/CC modes priority
• High-precision measurement
• High-speed transient response <1ms
• Low output ripple & noise
• Intuitive and user-friendly touch screen
• Standard USB, LAN interfaces
• Optional APG, CAN FD, GPIB, and master/slave parallel control interfaces
• AC input: 1-phase/3-phase 200-240Vac or 3-phase 380-400Vac

The 62000E series supports constant voltage (CV) and constant current (CC) modes, allowing users to switch output priority based on test requirements. These power supplies feature high output precision for both settings [control?] and measurements, fast dynamic response, and low output noise, making them ideal for diverse testing applications in laboratories, production lines, and integration into automated test equipment (ATE).

This series is ideal for both single-channel and multi-channel testing applications, such as D2D power system ATE setups, automotive component systems, satellite power system reliability, long-term durability of active and passive components, integrated power supplies for industrial and medical systems, supply and aging of semiconductor power components, LED and laser diodes, and solar panel production and aging.

Compared to traditional power supplies, the 62000E series saves space, improves energy efficiency, and simplifies testing at a competitive price.

The 62000E series supports creation of custom output waveforms with up to 100 programmable sequences via List Mode, with dwell times adjustable between 10ms and 65,535 seconds. This enables users to meet a wide range of testing needs, including voltage drop testing of DC-DC converters and inverters, component lifecycle testing, and avionics testing.

This series supports 1-phase/3-phase 200-240Vac and 3-phase 380-400Vac input. With active PFC and 92% efficiency, it reduces electricity costs and minimises the required power system capacity, making it compatible with electrical systems worldwide. Various control interfaces are available, including USB, LAN, CAN FD, GPIB, and analogue APG, allowing for flexible integration into any test system.
