Hummel

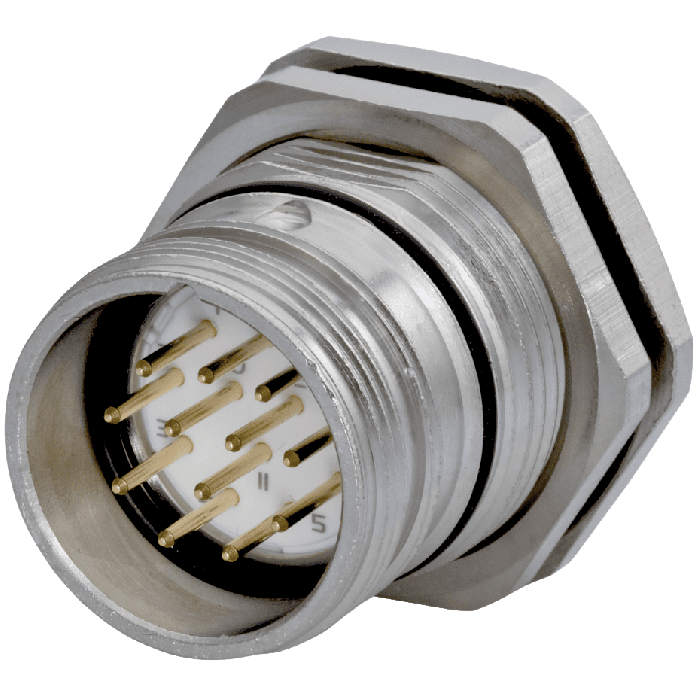

M23 Signal panel connector housing
M23 Signal panel connector housing from Hummel. Also known as 7458000000. The body material is Copper-Zinc alloy. Protection class IP 67, IP 69 K
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 7458000000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Length (mm) | 29.5 |
| Weight (kg) | 0.04828 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert. 7.439.XXX.XXX only pin insert possible |
| Customs tariff number | 85366990 |
| EAN code | 4033878503652 |
| ETIM 7 | EC003556 |
| Body size | M23 |
| Housing type | Panel |
| Material housing | Copper-Zinc alloy |
| Material housing surface | Nickel |
| Coding | - |
| Installation type | Rear wall. Single hole mounting |
| Version | TWILOCK-S |
| External thread (AG) | M25 x 1.5 |
| External thread - plug in side | M23 x 1 |
| Degree of protection | 3 |
| Locking type | Screw connection |
| Shield | unshielded |
| Seal type | O-Ring |
| Material seals / O-rings | NBR |
| Panel hole (mm) | Ø 25 + 0,1 |
| Drill form (mm) | D 24,1 + 0,1;D Ø 25 + 0,1 |
| Flange (mm) | - |
| Protection class | IP 67, IP 69 K |
| Usage | Signal |
| Body size | M23 |
| Housing type | Panel |
| Housing material | Copper-Zinc alloy |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
