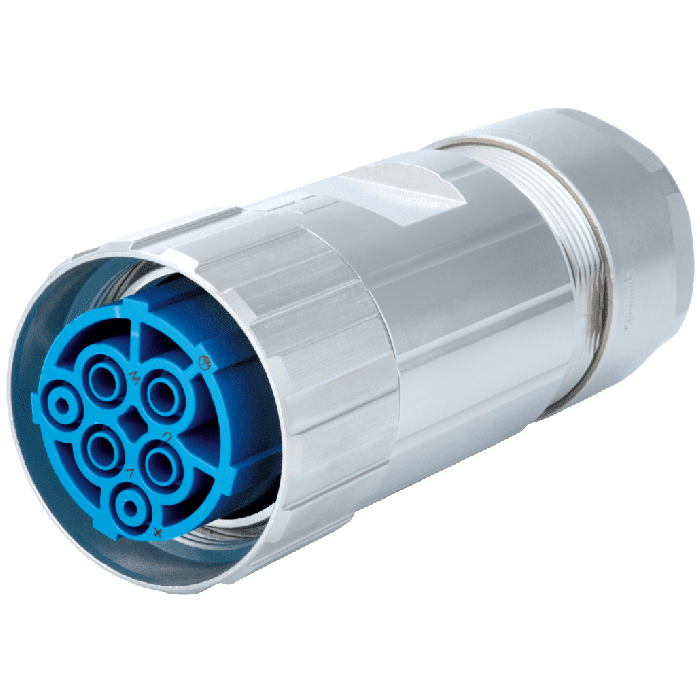

M40 Power cable connector incl. insert

M40 Power cable connector incl. insert from Hummel. Also known as 7710823000. The body material is brass. Die Casting. Protection class IP 67, IP 69 K
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Brand Name 7710823000
Manufacturer Hummel
Additional Description
  • Cable Diameter [mm] : 21- 28
  • Housing Type : Cable
  • Internal thread plug-in side : M40 x 1.5
  • Knurled nut-⌀ plug-in side [mm]: 46
  • Locking type : Screw connection
  • Material housing : Nickel
  • Material seals/o-rings : FKM (FPM);NBR
  • Protection class : IP 67, IP 69 K
  • Shield : shielded
  • Suitable contact inserts :
  • Temperature range : -40° C to +125° C
  • Wrench size (SW1/SW2) : 40/38
Video URL https://youtu.be/H5rttn0oroY
Colour blue
Length (mm) 111.2
Weight (kg) 0.342
Customs tariff number 85366990
EAN code 4033878504307
ETIM 7 EC002635
Body size M40
Characteristic of connection Crimp
Housing type Cable
Material housing brass. Die Casting
Material housing surface Nickel
Number of poles 6.0000
Coding -
Insert Socket
Signal contact diameter (mm) 2.0000
Power contact diameter (mm) 3.6
Minimum mating cycles > 500
Version for socket inserts, with knurled nut
External thread - plug in side -
Insulating body material PBT
Internal thread - plug in side M40 x 1.5
Crimp range 0.14 - 16 mm²
Material contact surface nickel, gold plated (0.25 µm)
Knurled nut diameter - plug in side (mm) 46.0000
Number of signal contacts 2.0000
Number of power contacts 3.0000
Number of PE contacts 1.0000
Twilock / Twilock-S -
Degree of protection 3
Suitable data contacts -
Locking type Screw connection
Suitable signal contacts 7015952002
Shield shielded
Seal type O-Ring
Suitable power contacts 7015953602;7015953612;7015953622;7015953624;7015953632
Pole picture 2 + 3 + PE
Material seals / O-rings FKM (FPM);NBR
Suitable PE / FE contacts 7015953602;7015953612;7015953622;7015953624;7015953632
Signal terminal cross section 0.14 – 1.5 mm²
Power terminal cross section 2.5 – 16 mm²
Nominal current signal A 28.0000
Nominal current power A 55.0000
Cable diameter (mm) 21 - 28
Wrench size SW1 / SW2 (mm) 40/38
Nominal voltage at_degree of pollution 3 signal (V) 300.0000
Nominal voltage at degree of pollution 3 power (V) 600.0000
Test voltage signal (V) 2500.0000
Test voltage power (V) 4000.0000
Insulation resistance signal (Ohm) > 10^13
Insulation resistance power (Ohm) > 10^13
Max contact resistance signal (mOhm) 3.0000
Max contact resistance power (mOhm) 1.0000
Protection class IP 67, IP 69 K
Usage Power
Body size M40
Housing type Cable
Housing material Brass. Die Casting
Housing surface material Nickel
Temperature Range -40°C to +125°C
More Information
Attribute Value
Data Sheet Click here to view
