Hummel

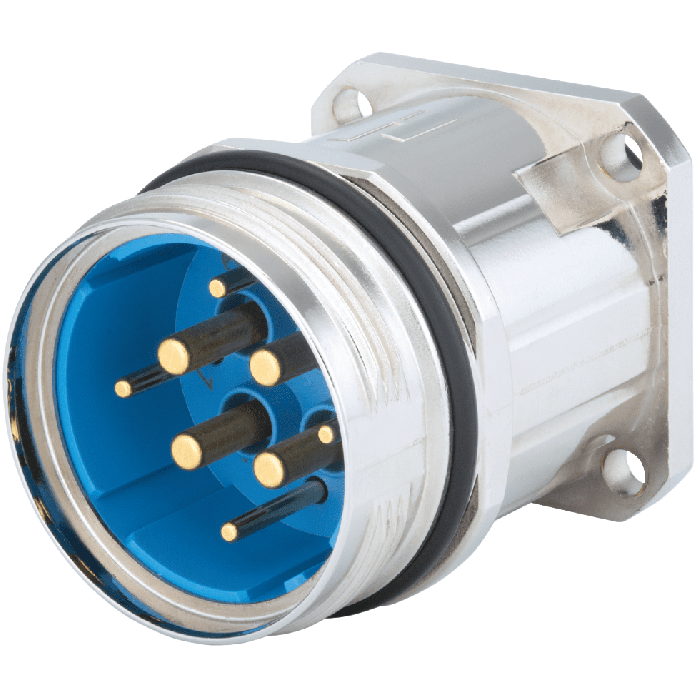

M40 Power panel connector incl. insert
M40 Power panel connector incl. insert from Hummel. Also known as 7740043000. The body material is Die Casting. Protection class IP 67, IP 69 K
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7740043000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Colour | blue |
| Length (mm) | 51.0000 |
| Weight (kg) | 0.1714 |
| Customs tariff number | 85366990 |
| EAN code | 4033878504512 |
| ETIM 7 | EC002635 |
| Body size | M40 |
| Characteristic of connection | Crimp |
| Housing type | Panel |
| Material housing | Die Casting |
| Material housing surface | Nickel |
| Number of poles | 8.0000 |
| Insert | Pin |
| Signal contact diameter (mm) | 2.0000 |
| Power contact diameter (mm) | 3.6 |
| Installation type | Flange. Front wall |
| Minimum mating cycles | > 500 |
| Version | for pin inserts |
| External thread - plug in side | M40 x 1.5 |
| Insulating body material | PBT |
| Crimp range | 0.14 - 16 mm² |
| Material contact surface | nickel, gold plated (0.25 µm) |
| Number of signal contacts | 4.0000 |
| Number of power contacts | 3.0000 |
| Number of PE contacts | 1.0000 |
| Degree of protection | 3 |
| Locking type | Screw connection |
| Suitable signal contacts | 7015952001 |
| Shield | unshielded |
| Seal type | O-Ring |
| Suitable power contacts | 7015953601;7015953611;7015953621;7015953622;7015953631 |
| Pole picture | 4 + 3 + PE |
| Material seals / O-rings | FKM (FPM);NBR |
| Suitable PE / FE contacts | 7015953601;7015953611;7015953621;7015953623;7015953631 |
| Panel hole (mm) | Ø 32 + 0,1 |
| Flange (mm) | 40 x 40 |
| Hole distance (mm) | 30.0000 |
| Signal terminal cross section | 0.14 – 1.5 mm² |
| Power terminal cross section | 2.5 – 16 mm² |
| Hole diameter (mm) | 4 x Ø 4,5 |
| Nominal current signal A | 28.0000 |
| Nominal current power A | 55.0000 |
| Nominal voltage at_degree of pollution 3 signal (V) | 300.0000 |
| Nominal voltage at degree of pollution 3 power (V) | 600.0000 |
| Test voltage signal (V) | 2500.0000 |
| Test voltage power (V) | 4000.0000 |
| Insulation resistance signal (Ohm) | > 10^13 |
| Insulation resistance power (Ohm) | > 10^13 |
| Max contact resistance signal (mOhm) | 3.0000 |
| Max contact resistance power (mOhm) | 1.0000 |
| Protection class | IP 67, IP 69 K |
| Usage | Power |
| Body size | M40 |
| Housing type | Panel |
| Housing material | Die Casting |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
