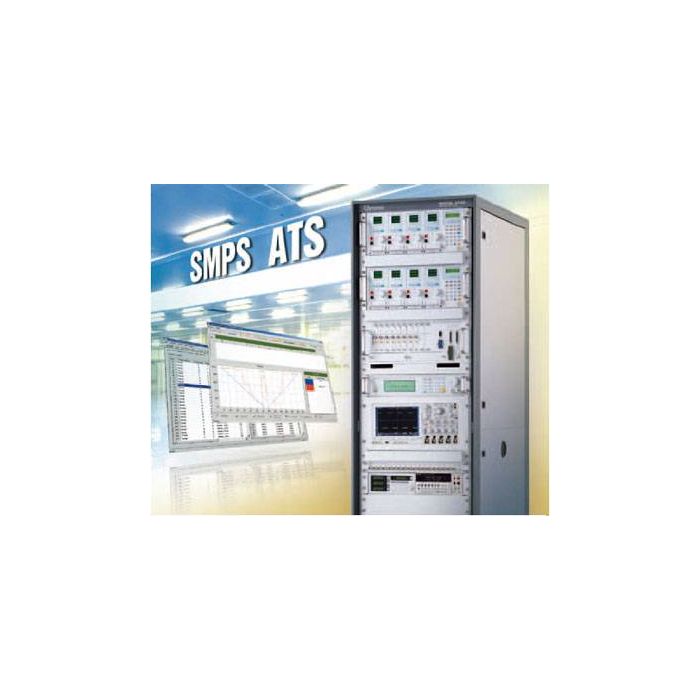

8000 Switching Power Supply ATS

The Chroma Power Supply Automatic Test system Model 8000 is the ultimate solution for power electronic testing. The system includes a wide range of hardware choice such as AC/DC Sources, Electronic Loads, DMM, Oscillate Scope, Noise Analyzer and Short /OVP Tester. This flexibility combined with its open architecture software platform-PowerPro III, gives users a flexible, powerful and cost effective test system for almost all types of power supply testing.

The 8000 test system uses a unique test command optimization technology to prevent repetitive control commands from being sent to the system hardware devices. This improve test speed dramatically and makes the Chroma 8000 an ideal choice for both high speed production applications as well as design verification.

The 8000 test system includes a sophisticated test executive which includes pre-written test items covering almost all industry standard power supply tests. User may also create new test items by using a special test item editing function. This gives users the capability to expand the test library unlimitedly.

Key Features:

• Open architecture software
  • Expandable hardware support
  • Support GPIB instruments & RS232 or RS485/I²C/CAN BUS interface
  • User editable test item
  • User editable test programs
  • User editable report format
  • Statistic report
  • On-Line control function
  • User authority control
  • Release control
  • Activity log
  • Master/Slave control mode
  • Multi-UUT test capability for single-output PSU
  • Support barcode reader
  • Support shop-floor control
  • Remote monitoring via internet
• Test command optimizer helps to improve test speed
• Capable of coding for any power supply testing applications
• Comprehensive hardware modules provide high accuracy and repetitive measurements
• High test throughput by system default test items
• Microsoft Word based evaluation report or UUT characterization
• Cost effective
• Other hardware expandable upon request
• Windows 98/NT/2000/XP/7 or higher based software
