61800-100 (800Vln)

105kVA (800Vln) Single / Three-Phase Regenerative Grid Simulator Providing a Complete Energy-saving Solution

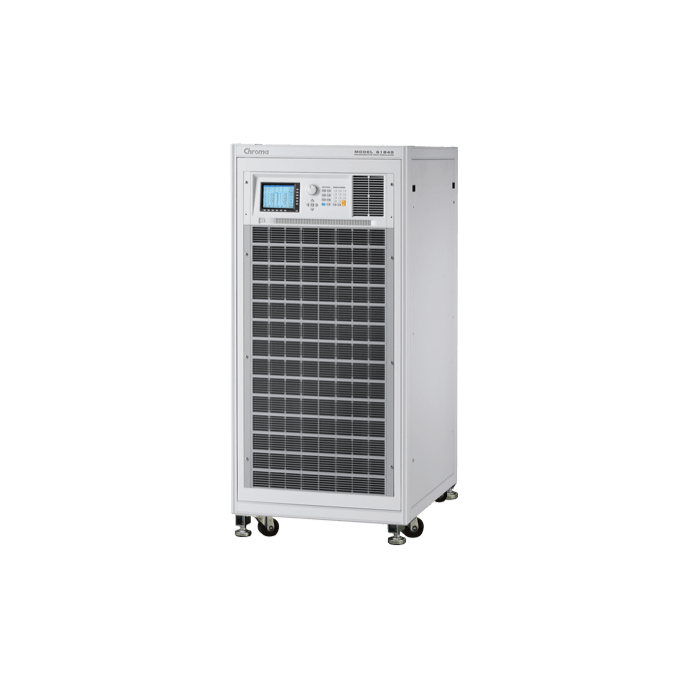

The Chroma 61800-100 (800Vln) Regenerative Grid Simulator is a full 4 quadrant, full regenerative, AC power supply designed for common electrical product testing such as home appliances, and industrial electronics needing a programmable input source.

In addition, the Chroma 61800-100 (800Vln) is designed to simulate grid characteristics for testing PV inverter and on-line UPSs. Power can be both sink and source from the UUT seamlessly to support different types of applications. In cases where the UUT sources current, a detection circuit will sense the excess power and recycle it back to the grid.

Key Features

• Output power 105kVA (800Vln)
• Output voltage:
  • 0~300V ; 0~400V (option *1)
  • 0~500V (option *2)
  • 0~800V *3
• Output frequency: DC, 30Hz~100Hz
• User-selectable single-phase or three-phase output
• Accept reverse rated apparent power with regenerative conversion to grid
• Specifically designed for PV inverter, Smart Grid and EV-related test applications
• 800VLN output voltage for high voltage high power grid tied PV inverter, PCS test application (61800-100 800VLN)
• 1kHz output
• Programmable slew rate settings for voltage and frequency
• Programmable voltage and current limits
• Turn on, turn off phase angle control
• LIST, PULSE, STEP mode functions for testing Power Line Disturbance (PLD) simulation
• Voltage dips, short interruption and voltage variation simulation
• Harmonics, inter-harmonics waveform synthesiser
• Comprehensive measurement capability, including current harmonics
• Analogue programmable interfaces
• Remote interfaces: GPIB, RS-232, USB and Ethernet
• Parallel output function supports three phase mode only (not single phase mode)
• Regenerative AC load function (option)
• XHV function (option)

*1: 61830/61845/61860 option
*2: 61800-100 option
*3: 61800-100 (800VLN)
