ADM-0012-5931SM
ADM-0012-5931SM
Marki Microwave
Broadband Distributed Amplifier

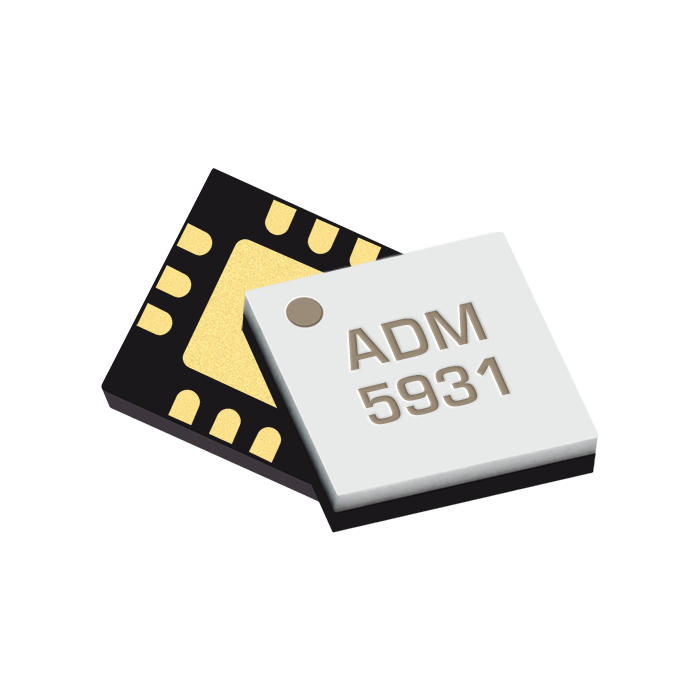

The ADM-0012-5931SM is a small, low power, and economical T3 driver or T3A pre-amplifier. It is a GaAs PHEMT distributed amplifier in a 3mm QFN surface mount package. The ADM-0012-5931SM can provide LO drive for ‘L’, ‘M’, ‘I’, and ‘H’ level mixers, with 11.5 dB typical gain and +19 dBm typical saturated output power for only 85 mA of current. The amplifier can be biased with internal circuitry, or with an external bias network for lower voltage and single supply operation. Additional applications include amplification of clock signals and other general purpose driver applications in electronic warfare and test and measurement.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Minimum Frequency | DC |
| Minimum Input Power for Saturation [dBm] | +3 |
| Maximum Input Power for Saturation [dBm] | +13 |
| Saturated Output Power [dBm] | +18 |
| Small Signal Gain [dB] | 11 |
| OIP3 [dBm] | +26 |
| Amplifier Type | LO Driver Surface Mounts |
| Package | Surface Mount |
| Attribute | Value |
|---|---|
