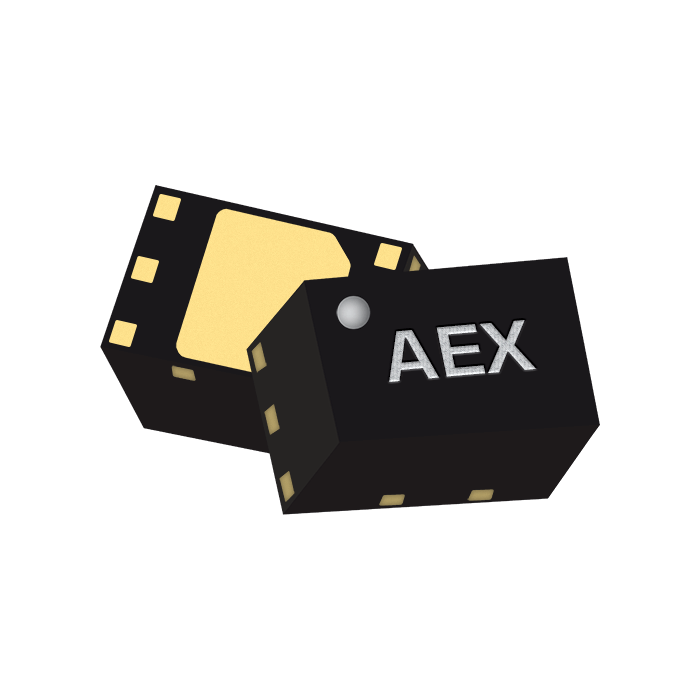

ADM-8475PSM
ADM-8475PSM
Marki Microwave
0.5 - 18 GHz High Dynamic Range Gain Block
The ADM-8475PSM is a high-linearity, low noise amplifier capable of providing 13 dB gain, +26 dBm OIP3 and 2 dB noise figure across a broad 0.5-18 GHz bandwidth. The amplifier's low power consumption, high dynamic range and small size make it a suitable choice as a linear signal amplifier for RF front-end, low SWaP applications. Compared to the sister ADM-8624PSM, the ADM-8475PSM has higher gain and lower noise. The ADM-8624PSM has flatter gain and lower return loss. The ADM-8624PSM is available in a compact 1.3 x 2 mm DFN package.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Minimum Frequency | 0.5 |
| Noise Figure [dBm] | 2 |
| Small Signal Gain [dB] | 13 |
| P1dB [dBm] | +16 |
| Output IP3 [dBm] | 26 |
| Voltage [V/V] | +5 |
| Current [mA] | 40 |
| Amplifier Type | Gain Block |
| Package | Surface Mount |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
