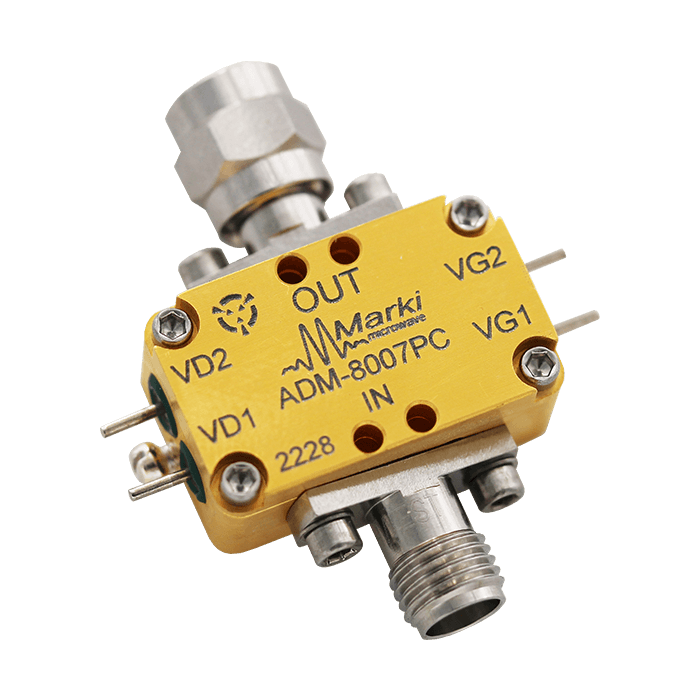

ADM1-8007PC
ADM1-8007PC
Marki Microwave
2 - 40 GHz Wideband LO Driver Amplifier
The ADM1-8007PC is a high-linearity, high gain, low noise distributed amplifier capable of providing +20dBm output power up to 35 GHz. When driven with an input power of 0 to +5 dBm, the ADM1-8007PC can provide sufficient LO drive to power all H and most S diode mixers to 40GHz. The amplifier has excellent return losses and gain flatness.
The ADM-8007PC is the ideal LO driver. For measured data of each and every Marki mixer with the ADM-8007.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Minimum Frequency | 2 |
| Minimum Input Power for Saturation [dBm] | +0 |
| Maximum Input Power for Saturation [dBm] | +8 |
| Saturated Output Power [dBm] | +22 |
| Small Signal Gain [dB] | 22 |
| OIP3 [dBm] | +30 |
| Amplifier Type | LO Driver Bare Die/Modules |
| Package | Module |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
