AMM-6702SM
AMM-6702SM
Marki Microwave

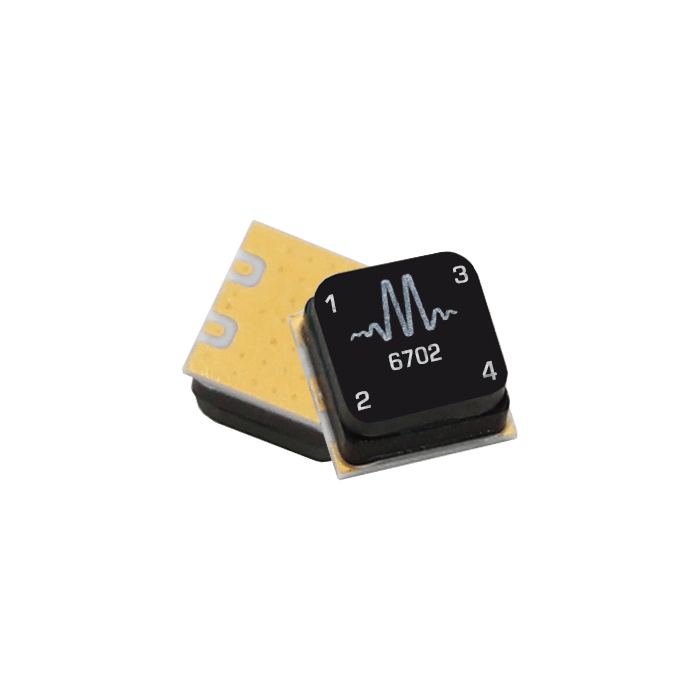

20-50 GHz GaAs Surface Mount LO Driver Amplifier
The AMM-6702SM is a surface-mount LO driver amplifier that is designed to provide sufficient LO drive for an H diode mixer such as the MM1-1850HSM or MM1-1850SSM across temperature with input power from 0-10 dBm. This ferritic package offers improved resilience to radiative feedback and oscillatory behavior over the bare-die package option, providing the customer with a compact, high gain, wideband LO driver amplifier.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Minimum Frequency | 20 |
| Minimum Input Power for Saturation [dBm] | +0 |
| Maximum Input Power for Saturation [dBm] | +5 |
| Saturated Output Power [dBm] | +19 |
| Small Signal Gain [dB] | 24 |
| OIP3 [dBm] | +27 |
| Amplifier Type | LO Driver Surface Mounts |
| Package | Surface Mount |
