AMM-7200SM
AMM-7200SM
Marki Microwave
12-46 GHz GaAs Surface Mount LO Driver Amplifier

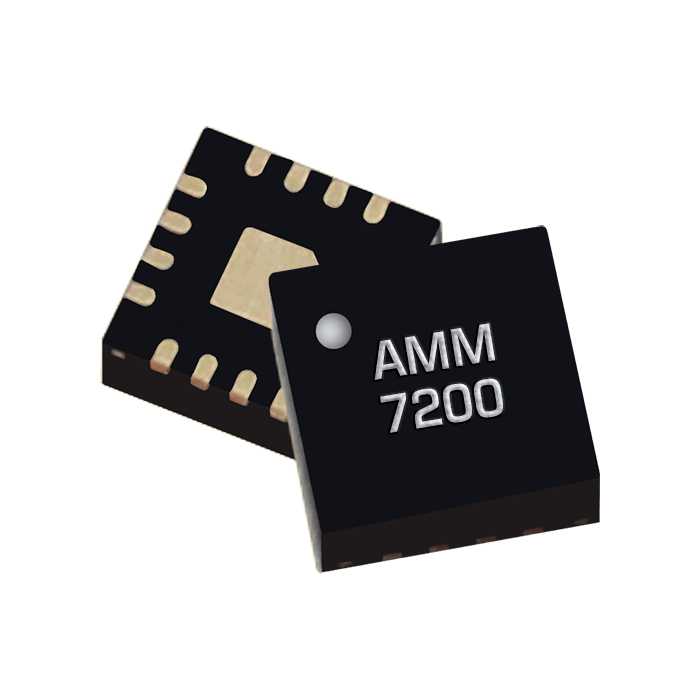

The AMM-7200SM is a surface-mount amplifier suitable for use as a single tone driver or general-purpose gain block. It can drive an L or H diode mixer from 12 to 46 GHz, or S diode mixer from 14 to 40 GHz when supplied with 0-10dBm input power. This amplifier also has exceptionally low input and output reflections, and excellent gain flatness in-band. The AMM-7200SM is packaged in a compact 3mm QFN for surface mount integration onto printed circuit boards.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Minimum Frequency | 12 |
| Minimum Input Power for Saturation [dBm] | +6 |
| Maximum Input Power for Saturation [dBm] | +12 |
| Saturated Output Power [dBm] | +22 |
| Small Signal Gain [dB] | 18 |
| OIP3 [dBm] | +29 |
| Amplifier Type | LO Driver Surface Mounts |
| Package | Surface Mount |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
