AMM-8211
AMM-8211
Marki Microwave
22 - 57 GHz GaAs Driver Amplifier

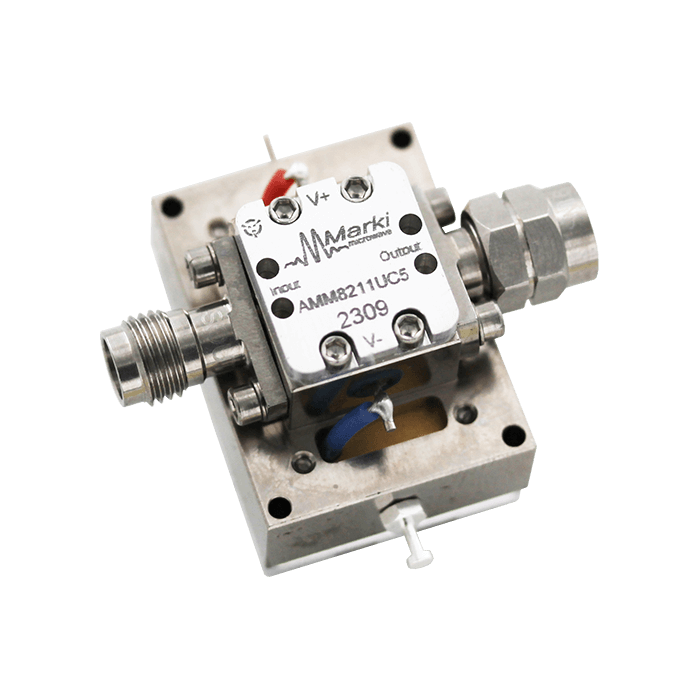

The AMM-8211 is a general-purpose broadband MMIC driver amplifier that provides +21 dBm output power suitable for driving a Marki H or L diode mixers at 22-57 GHz and S diode mixer from 25-50 GHz. The UC5 module features a single-supply, positive only bias and has built in DC-blocking capacitors on the input and output.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Minimum Frequency | 22 |
Minimum Input Power for Saturation [dBm] | +9 |
Maximum Input Power for Saturation [dBm] | +13 |
Saturated Output Power [dBm] | +21 |
Small Signal Gain [dB] | 13 |
OIP3 [dBm] | +27 |
Amplifier Type | LO Driver Bare Die/Modules |
Package | Module |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
