APM-7098SM
APM-7098SM
Marki Microwave
0.1-22 GHz Surface Mount Low Phase Noise Amplifier

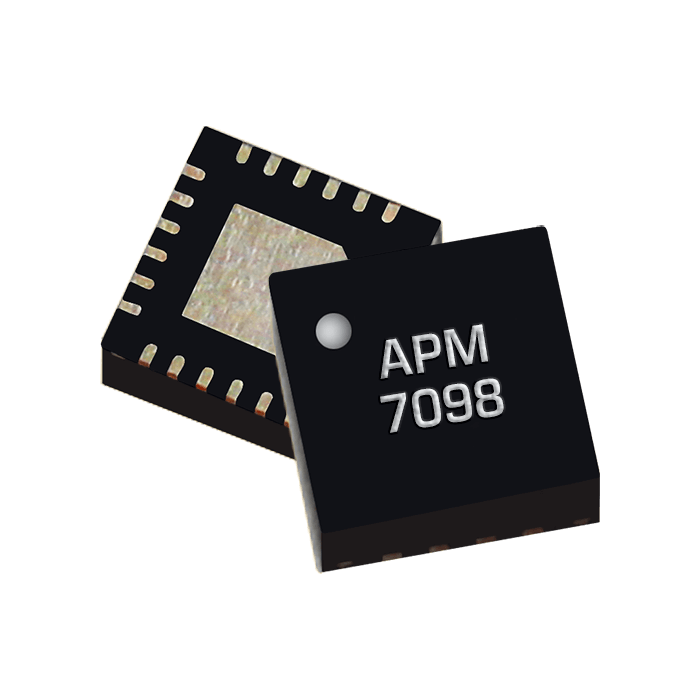

The APM-7098SM is a broadband low phase noise LO driver amplifier designed to provide a saturated +23 dBm output power with low DC power consumption. This amplifier uses GaAs HBT technology for low phase noise, and is optimized to provide enough power to drive the LO port of an S-diode mixer from 100 MHz to 18 GHz or of an H or L-diode mixer from 100 MHz to 22 GHz. This amplifier can be operated with a variety of bias conditions for both low and high-power applications. The APM-7098SM is packaged in a compact 4 mm QFN for surface mount integration on circuit board-based systems.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Minimum Frequency | 0.1 |
| Minimum Input Power for Saturation [dBm] | +10 |
| Maximum Input Power for Saturation [dBm] | +16 |
| Saturated Output Power [dBm] | +23 |
| Small Signal Gain [dB] | 15 |
| OIP3 [dBm] | +22 |
| Amplifier Type | LO Driver Surface Mounts |
| Package | Surface Mount |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
