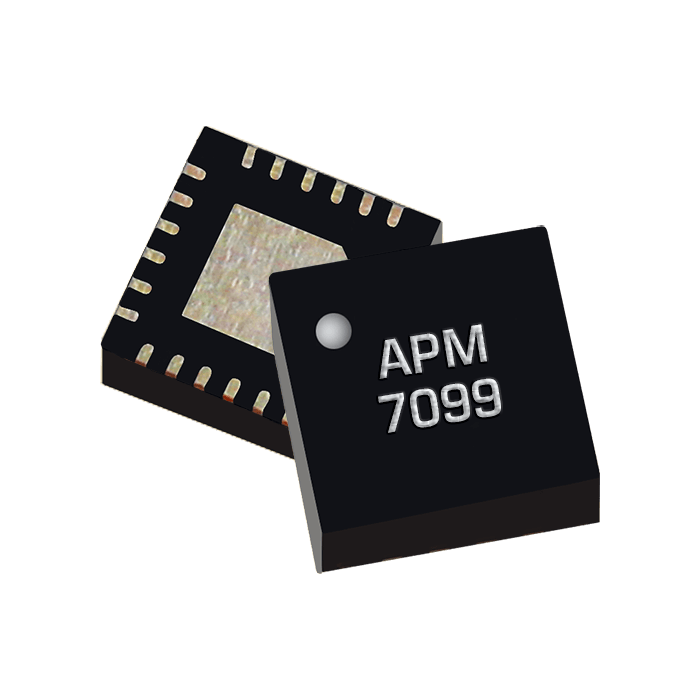

APM-7099SM
APM-7099SM
Marki Microwave
0.01-20 GHz Surface Mount Low Phase Noise Amplifier
The APM-7099SM is a broadband low phase noise driver amplifier designed to provide a saturated +25 dBm output power with low DC power consumption. This amplifier uses GaAs HBT technology for low phase noise, and is optimized to drive our NLTL multiplier line. It can also provide enough power to drive the LO port of an S-diode mixer from 10 MHz to 15 GHz, or of an H or L-diode mixer from 10 MHz to 20 GHz. This amplifier can be operated with a variety of bias conditions for both low and high-power applications. The APM-7099SM is packaged in a compact 4mm QFN for surface mount integration on circuit board-based systems.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Minimum Frequency | 0.01 |
Minimum Input Power for Saturation [dBm] | +10 |
Maximum Input Power for Saturation [dBm] | +16 |
Saturated Output Power [dBm] | +26 |
Small Signal Gain [dB] | 14 |
OIP3 [dBm] | +27 |
Amplifier Type | LO Driver Surface Mounts |
Package | Surface Mount |
