APM-7516PSM
APM-7516PSM
Marki Microwave
1.5-20 GHz Surface Mount Low Phase Noise Amplifier

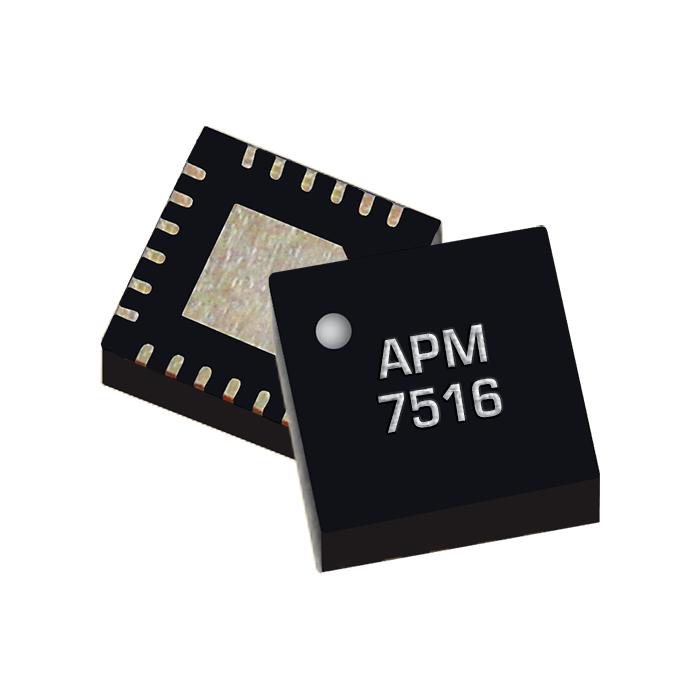

The APM-7516PSM is a broadband low phase noise driver amplifier designed to provide enough power to drive the LO port of an H or L-diode mixer with a range of input powers. This amplifier uses GaAs HBT technology for low phase noise and provides +18 to 23 dBm output power from 1.5 GHz to 20 GHz. This amplifier can be operated with a variety of bias conditions for both low and high-power applications. The APM-7516SM shows less variation in current supply under saturation than similar HBT amplifiers, has a lower thermal resistance, and is less sensitive to damage from high input powers. The APM-7516PSM is packaged in a compact 4 mm QFN with integrated blocking capacitors and power supply inductor for surface mount integration on circuit board-based systems.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Minimum Frequency | 1.5 |
Minimum Input Power for Saturation [dBm] | +10 |
Maximum Input Power for Saturation [dBm] | +14 |
Saturated Output Power [dBm] | +22 |
Small Signal Gain [dB] | 11 |
OIP3 [dBm] | +33 |
Amplifier Type | LO Driver Surface Mounts |
Package | Surface Mount |
