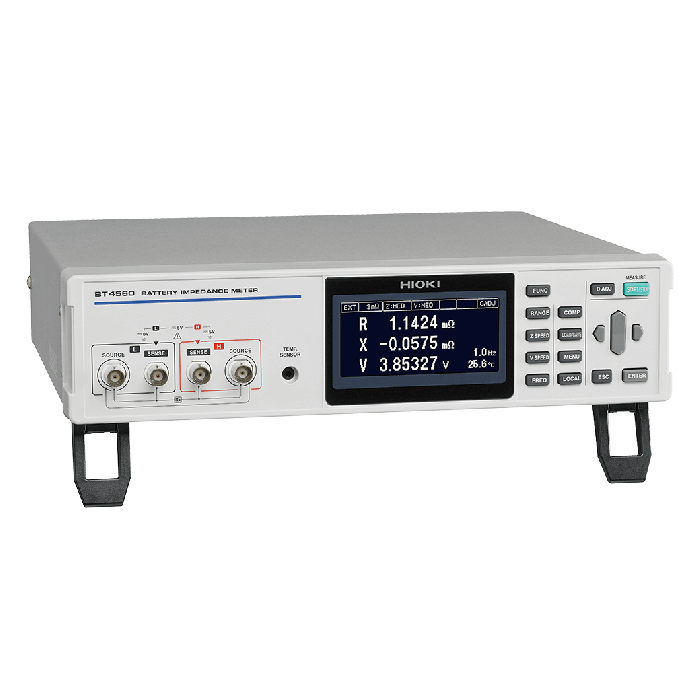

Hioki benchtop battery testers support simultaneous high-speed measurement in the ever-expanding production lines of increasingly larger lithium-ion low resistance batteries. The BT4560 battery impedance tester measures the impedance of lithium-ion batteries using the low-frequency AC-IR measurement method without charging and discharging the battery, substantially reducing the time needed to inspect the internal resistance of battery cells.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Measurement range: 5.00000 V (single range), Measurement time: 0.1 s (Fast) to 1.0 s (Slow)
Temperature measurement
Range: -10.0 °C to 60.0 °C, Measurement time: 2.3 s
Basic accuracy
Z: ±0.4% rdg. θ: ±0.1 °, V: ±0.0035% rdg. ±5 dgt. , Temperature: ±0.5 °C (at 10.0 to 40.0 °C)
Functions
Comparator, self-calibration, sample delay, average, contact check, measurement current error, and other
Interfaces
RS-232C/USB (virtual COM port) * Cannot be used simultaneously
EXT. I/O (NPN/PNP can be switched)
Power supply
100 to 240 V AC, 50/60 Hz, 80 VA max
Dimensions and mass
330 mm (12.99 in) W × 80 mm (3.15 in) H × 293 mm (11.54 in) D, 3.7 kg (130.5 oz)
Accessories
Power cord ×1, Instruction manual ×1, Zero-adjustment board ×1, USB cable (A-B type) ×1, CD-R (communication instruction manual, PC application software, USB driver) ×1
Instrument Type
Battery Tester
Notes
This product is not supplied with measurement probes. Please select and purchase the measurement probe options appropriate for your application separately.
