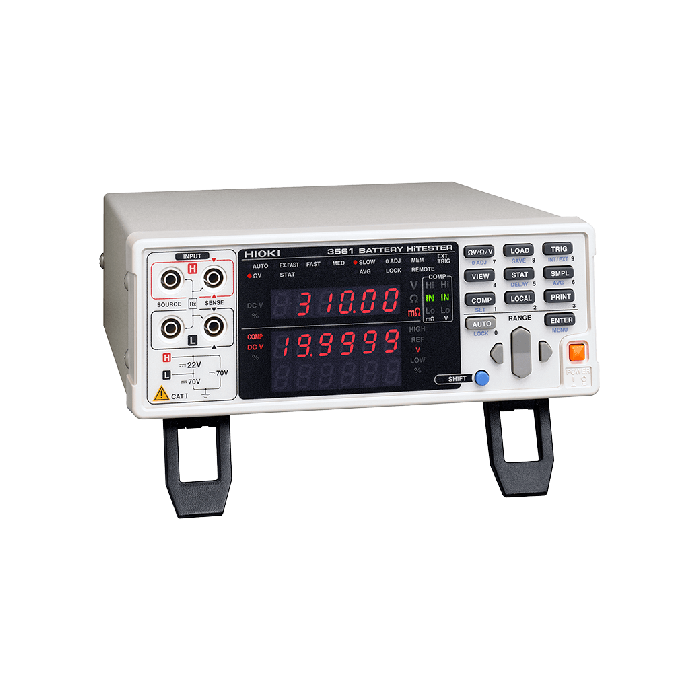

Battery HiTester - for Testing of Small Battery Packs for Mobile Devices
This product is available in 5-7 weeks
Battery Tester for High-Speed Production Line Testing of Small Battery Packs for Mobile Devices
Hioki benchtop battery testers support simultaneous high-speed measurement of internal resistance and battery voltage for the ever-expanding production lines of increasingly larger lithium-ion low resistance batteries, and other battery packs for high voltage applications. The 3561 is a wide range 300 mΩ to 3Ω/20V DC battery internal resistance tester for high-speed production line testing of small secondary batteries.
Key Features
- High-speed testing for production lines of small battery packs for mobile and portable communications devices
- Measure internal resistance and battery voltage
- For process control such as in high-speed automated assembly lines (*1)
- Measure from 0.01 mΩ to 3.1 Ω
- Measure from ± 0.1 mV DC to ± 19.9999 V DC
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
| Attribute | Value |
|---|---|
| Power Supply | 100 to 240 VAC, 50/60 Hz, 30 VA max. |
| Dimensions and Weight | 6 VDC (resolution 10 μV) to 300 VDC (resolution 1 mV), 3 ranges |
| Included Accessories | Instruction manual ×1, Power cord ×1 |
| Display | 31000 full digits (resistance), 199999 full digits (voltage), LED |
| Other Functions |
Judgment result: Hi/IN/Lo (resistance and voltage judged independently) Setting: Upper and lower limit, Deviation (%) from reference value Logical ANDed result: PASS/FAIL, calculates the logical AND of resistance and voltage judgment results. Result display, beeper, or external I/O output, Open-collector (35 V, 50 mA DC max.) |
| Interfaces | External I/O, RS-232C, Printer (RS-232C) |
| Accuracy | ± 0.01% rdg. ± 3 dgt. (Add ± 3 dgt. for EX.FAST, or ± 2 dgt. for FAST and MEDIUM) |
| Sampling Rate |
Four steps, 4 ms (Extra-FAST), 12 ms (FAST), 35 ms (Medium), 150 ms (Slow) (Typ., sampling time depends on supply frequency settings and function.) |
| Analogue Output | Measured resistance (displayed value, from 0 to 3.1 V DC, -01 suffix models only) |
| Resistance Measurement Ranges |
300 mΩ (max. display 310.00 mΩ, resolution 10 μΩ) to 3 Ω (max. display 3.1000 Ω, resolution 100 μΩ), 2 ranges |
| Voltage Measurement Ranges | DC 20 V, resolution 0.1 mV, Accuracy: ±0.01 % rdg. ±3 dgt. (Add ±3 dgt. for EX.FAST, or ±2 dgt. for FAST and MEDIUM) |
| Measurement Time |
Response time + sampling rate, approx. 3 ms for measurements (Response time depends on reference values and the measurement object.) |
| Comparator Functions |
Judgment result: Hi/IN/Lo (resistance and voltage judged independently) Setting: Upper and lower limit, Deviation (%) from reference value Logical ANDed result: PASS/FAIL, calculates the logical AND of resistance and voltage judgment results. Result display, beeper, or external I/O output, Open-collector (35 V, 50 mA DC max.) |
| Max. Applied Measurement Voltage |
±22 V DC |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
