Hioki

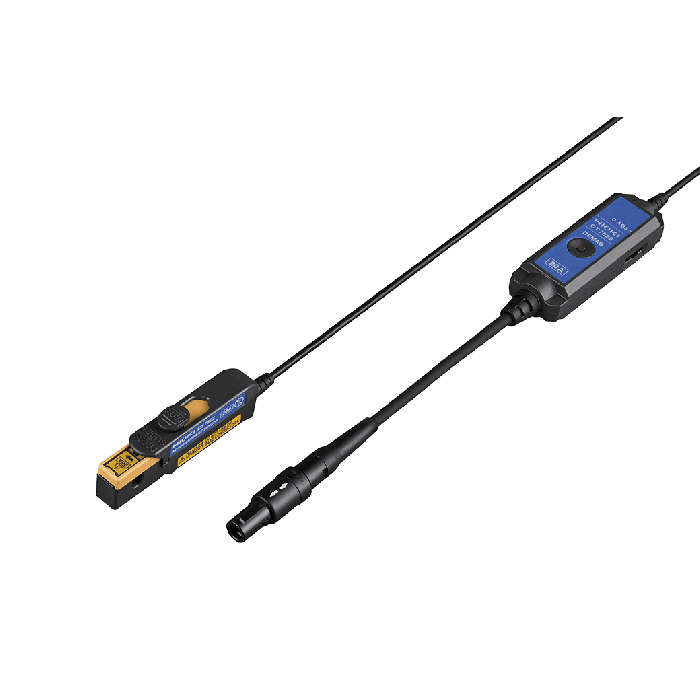

AC/DC Current Sensor 20 A, DC to 100 kHz - One of the industry’s smallest current sensors
One of the industry’s smallest current sensors
Compact, non-contact, and high-accuracy
Multiple sensors can be easily installed, even in confined spaces and locations with complex wiring.
Compact sensor makes possible high-performance, high-accuracy measurement.
Broad operating temperature range
Operating temperature range: -40°C to 85°C, low-level DC current can be measured with a high degree of accuracy, even in environments where the ambient temperature varies.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Weight (kg) | 140 g |
| Key Features |
|
| Absolute Accuracy | DC± 0.3％ rdg. ±0.1％ f.s. |
| Bandwidth | DC to 100 kHz |
| Whats Included | Colored labels (for channel identification), Carrying case, Instruction Manual, Operating Precautions |
| Dimensions | Sensor: 76.5W × 23.4H ×14.2D mm (excluding protrusions and the cable) Relay box: 80W × 20H × 26.5D mm (excluding protrusions and the cable) |
| Operating Temperature | Sensor: -40°C to 85°C, 80% RH or less (non-condensing) Relay box: -25°C to 50°C, 80% RH or less (non-condensing) |
| Cable length (M) | 4 m (between sensor and relay box), 0.2 m (between relay box and output connector) |
| Cable Length | 4 m (between sensor and relay box), 0.2 m (between relay box and output connector) |
