Tektronix
2000 A AC Current probe/BNC
A621 2000 Amp AC Current probe/BNC

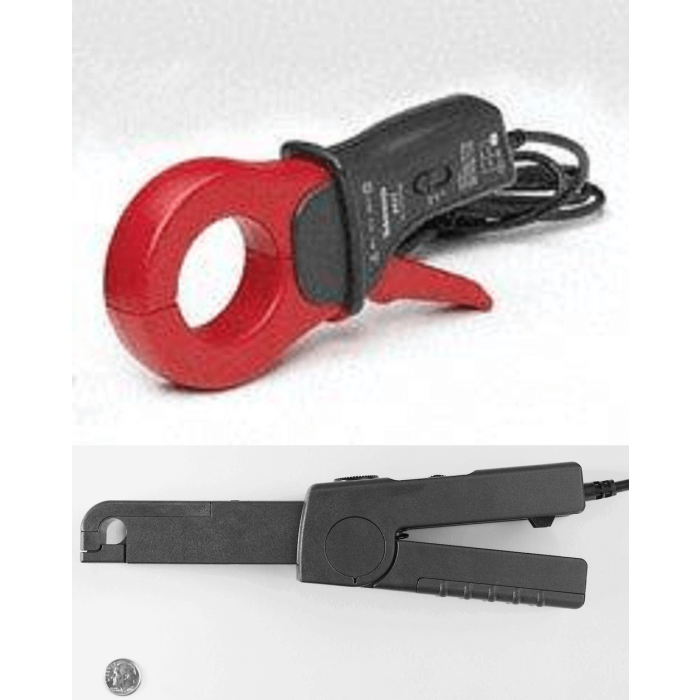

This industrial-style clamp-on A621 probe has a BNC connector and can be used with a shrouded banana plug adapter so it can be used on digital multimeters, TekMeter, and oscilloscopes. The Tektronix A621 can measure AC currents from 100 mA to 2000 A peak over a frequency range of 5 Hz to 50 kHz. It provides a 1 mV, 10 mV, or 100 mV output for each Amp measured.
- Frequency range: 5 Hz to 50 kHz
- Maximum input current: 2000 A peak
- Output: 1 mV/A, 10 mV/A, 100 mV/A
- Maximum conductor diameter: 54 mm (2.13 in.)
- Termination: BNC1
- Maximum bare-wire voltage: 600 V (CAT III)
- Safety: UL3111-2-032, CSA1010.2.032, EN61010-2-032, IEC61010-2-032
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | Current_Probes |
| Product Family | Current Probes |
| Key Features |
|
| Bandwidth | 50 kHz |
| Applications |
|
| Accessory Type | Probe |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
