AS-03, 30 MHz – 6 GHz
AS-03
Narda Safety Test Solutions
Antenna Set 30 MHz to 6 GHz

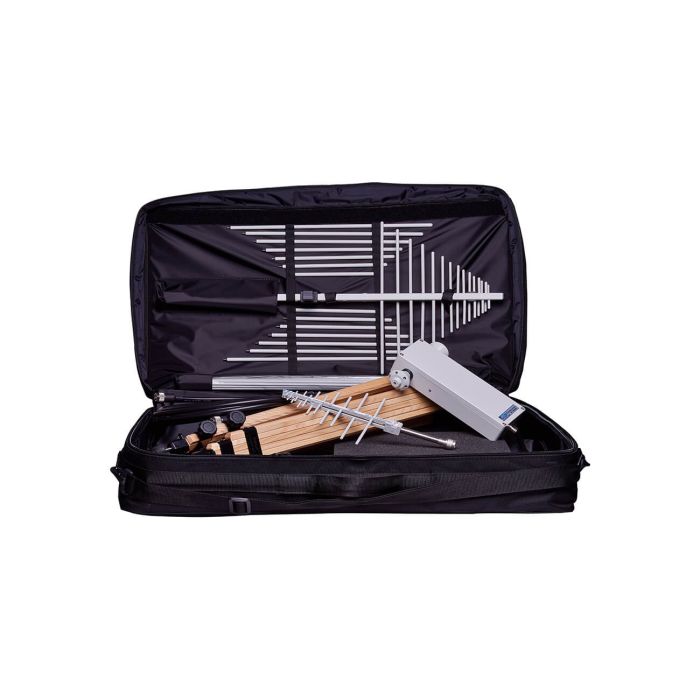

AS-03 is a Compact Broadband Antenna Set composed of a BC-01 Biconical Dipole, LP-02 and LP-03 Log Periodic Dipole Array designed for radiated emissions and immunity testing that can be used in conjunction with any receiver or spectrum Analyser.
Its ideal companion is the EMI Receiver Unit 9060 that can be easily mounted on the antenna mast.*
Key Features
- 30 MHz to 6 GHz frequency range
- Excellent antenna factor
- Tripod adapter for easy vertical-horizontal polarization change
- Individual calibration
- Robust, rustproof aluminium construction
- Lightweight
*The direct connection between antenna and PMM receiver eliminates additional sources of uncertainties due to coaxial cable attenuation and scattering.
For further information please consult our brochure "Fully CISPR-Compliant Digital EMC/EMI receivers 10 Hz to 18 GHz".
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range |
BC-01: 30 to 200 MHz LP-02: 200 MHz to 3 GHz LP-03: 800 MHz to 6 GHz |
| Gain |
BC-01: -15 +2 dBi typical LP-02: 6 dBi typical LP-03: 3,5 to 6,5 dBi typical |
| Antenna Factor |
BC-01: 8 to 14 dB/m typical LP-02: 13 to 36 dB/m typical LP-03: 23 to 42 dB/m typical |
| Max Input Power |
BC-01: 100 W LP-02: 100 W up to 1 GHz, 50 W up to 3 GHz LP-03: 75 W |
| Construction |
BC-01: Aluminium LP-02: Aluminium |
| Impedance |
BC-01: 50 Ω nominal LP-02: 50 Ω nominal |
| Colour |
BC-01: RAL 7035 LP-02: RAL 7035 |
| Dimensions |
BC-01: 65 x 65 x 137 cm LP-02: 70 x 10 x 86 cm LP-03: 32,5 x 8,1 x 18,7 cm |
| Weight |
BC-01: 1.8 kg LP-02: 1.1 kg LP-03: 0.25 kg |
| Connector |
BC-01: N female LP-02: N female LP-03: N male (LP-03) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
