LP-03 800 MHz – 6 GHz
LP-03
Narda Safety Test Solutions
Log Periodic Antenna

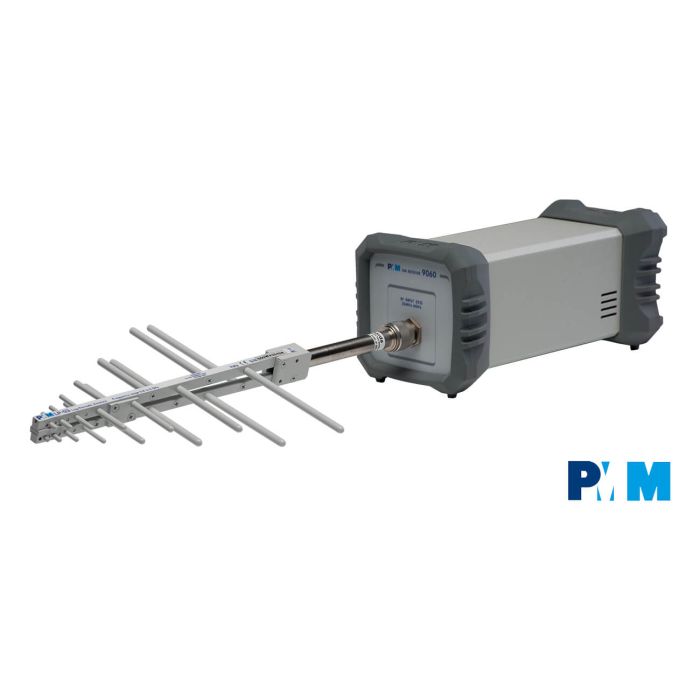

The LP-03 is a Log-Periodic Antenna designed for application in radiated EMC.
It can be used in conjunction with any Receiver or Spectrum Analyser.
Its ideal companion are the EMI Receiver Units 9060, 9010/60P and it can be easily mounted on the antenna mast.
The direct connection between antenna and receiver eliminates additional sources of uncertainties due to the coaxial cable attenuation and dispersion.
The LP-03 is also available in practical Antenna system:
- AS-03, 30 MHz - 6 GHz
- AS-06, 30 MHz - 18 GHz
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range | 800 MHz to 6 GHz |
| Gain | 6 dBi typical |
| Antenna Factor | 23 to 40 dB/m typical |
| VSWR | < 1,7:1 typical |
| Max Input Power | 75 W |
| Construction | Aluminium |
| Impedance | 50 Ω nominal |
| Colour | RAL 7035 |
| Dimensions | 325 x 81 x 187 mm |
| Weight | 250 g |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
