CNT-91R

CNT-91R

Pendulum Instruments

400 MHz, 50 ps Timer/Counter including Rubidium Time Base

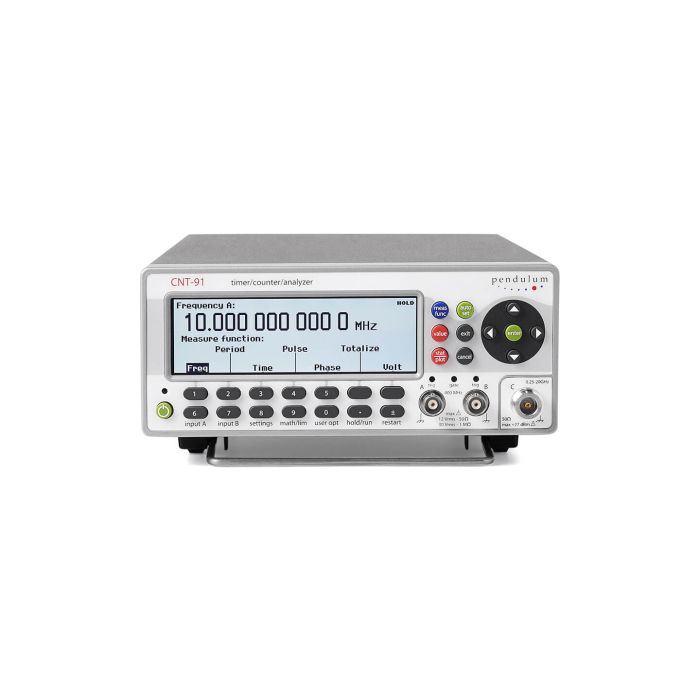

main product photo

The Pendulum CNT-91 zero-dead-time counter features continuous data streaming of measurements over GPIB/USB during, not after, measuring; creating a dynamic measurement/analysis system, a fi rst in the counter industry. The CNT-91 is a unique frequency Analyser, outperforming any universal timer/counter.

Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Power Consumption Less than 60W during warm-up
Less than 50W during normal operation
Altitude 4,600 meters
Safety EN 61010-1, pollution degree 2, meas cat I, CSA C22.2 No 1010-1, CE
Key Features
  • Continuous Data Streaming over the bus during, not after, measuring
  • Zero-dead-time frequency/period measurements
  • Fast GPIB/USB bus speed; 4k meas/sec in talker only mode 15k meas/sec in block mode
  • High resolution 50 ps-time; 12 digits/sec-frequency
  • Graphic display; numerical statistics, histogram, trend & modulation domain
  • 250k meas/sec to internal memory 3.75M stored measurement results
  • Programmable Pulse Output from 0.5 Hz to 50 MHz
  • Integrated Rubidium atomic clock (model CNT-91R)
Shock Half-sine 30G per MIL-PRF-28800F; Bench handling
Vibration Random and sinusoidal according to MIL-PRF-28800F, Class 3
Accessories
  • 19" Rackmount kit for one CNT-9x, GPS-12x, GSG-5/6 or FDA-300 plus one Keysight ½*19" unit, side by side
  • 19" Rackmount kit for two CNT-9x, GPS-12x, GSG-5/6 or FDA-300, side by side
  • 19" Rackmount kit for one CNT-9x, GPS-12x, GSG-5/6 or FDA-300
  • Soft Carrying case for CNT-9x, GPS-12x, GSG-5/6 or FDA-300
  • Heavy duty Transport case for CNT-9x, GPS-12x, GSG-5/6 or FDA-300
Transit Drop Test Heavy-duty transport case and soft carrying case tested according to MIL-PRF28800F
Class MIL-PRF-28800F, Class 3
Calibration and Extended Warranty
  • Timebase aging measurement with report, per week. Available for CNT-9x, GPS-12x, GPS-88/89, 6688/6689 (NOTE This option includes NO Calibration, which must be ordered separately)
  • Calibration certificate w. Protocol, standard oscillator
  • Time-base Calibration certificate w. Protocol, OCXO oscillator, for CNT-9x or 6688
  • Accredited ISO 17025 time-base Calibration certificate w. protocol, OCXO oscillator, for CNT-90, CNT-91, CNT-90XL or 6688
  • Time-base calibration certificate w. Protocol for CNT91R or 6689.
  • Two years Extended warranty to a total of 4 years (without product registration, or 5 years (with product registration).
  • Service agreement 1 year. Includes yearly functional check, calibration of time-base oscillator, calibration of RF output level (GSG-5/6 only), priority repair and more.
Other Options
  • Internal Battery operation
  • Rear panel inputs for CNT-90 family (replaces front panel inputs).
  • GPIB-to-Ethernet Controller. Plugs into the GPIB port of the CNT-9x and enables remote control via Ethernet
  • Pulsed RF Software Option for CNT90XL. Provides following additional measurements: Frequency in burst, peak power in burst, pulse width, pulse repetition interval / frequency. Must be ordered together with the CNT-90XL and is not upgradable.
  • TimeView 2 Modulation Domain Analysis software for CNT-90, CNT90XL and CNT91/91R. Includes CD-ROM and activation key.
  • TimeView 3 Modulation Domain Analysis software for CNT91/91R only. Includes CD-ROM and activation key.
Built in Options
  • Medium stability OCXO time base option for CNT-90/91 series; ageing: 5 ppb / day. Note this OCXO is standardly included in CNT-90XL
  • High-stability OCXO, oven oscillator, option for CNT-90-family
  • Ultra-stability OCXO, oven oscillator, option for CNT-90-family
Built in High Frequency Input C Options
  • 3 GHz input option for CNT-90/91
  • 8 GHz input option for CNT-90/91
  • 15 GHz input option for CNT-90/91
  • 20 GHz input option for CNT-90/91
EMC EN 61326 (1997); A1 (1998), increased test levels according to EN 50082-2, Group 1, Class B, CE
Storage Temperature -40°C to +71°C
Operating Temperature 0°C to +45°C
Humidity 5%-95% (10°C to 30°C)
5%-75% (30°C to 40°C)
5%-45% (40°C to 50°C)
Dimensions 210 x 90 x 395 mm
More Information
Attribute Value
Data Sheet Click here to view
