CNT-90XL-60G

CNT-90XL-60G

Pendulum Instruments

60 GHz Microwave Counter/Analyser

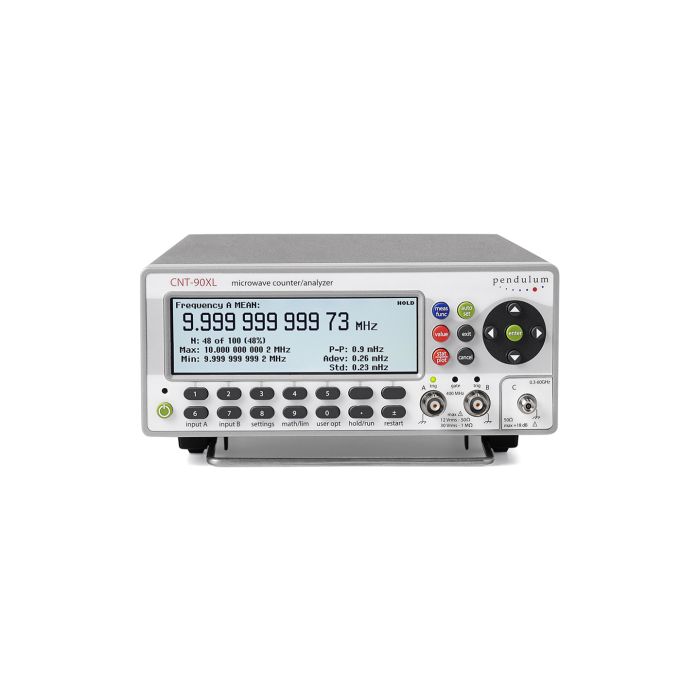

main product photo

The Pendulum CNT-90XL Microwave Counter/Analyser is an excellent tool for measurement, analysis and calibration of Microwave Frequency, Power, and Pulsed RF time parameters like pulse width and PRI. Whether in test systems, on the R&D bench, in the calibration lab or out in the field, the high-resolution and ultra-fast CNT-90XL is the state-of-the-art Microwave Counter/Analyser.

The NEW option for pulsed RF makes CNT-90XL ideal for radar test and calibration. The CNT-90XL offers a unique ease-of-use with graphical display and improved control over measurement at an affordable price.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Altitude 4,600 meters
Safety EN 61010-1, pollution degree 2, meas cat I, CSA C22.2 No 1010-1, CE
Key Features
  • Pulsed RF measurements down to 30 ns
  • Frequency, Power, CW or Burst to 27, 40, 46 or 60 GHz
  • Speed: 250k measurements/s to internal memory
  • Resolution: 14 digits display
  • Statistical analysis including histogram, trend and modulation domain display
  • Unique ease-of-use: Multiparameter display and graphical presentation of results
  • USB & GPIB as standard
  • 2 instruments in one - Microwave Counter/Analyser & 400 MHz general-purpose timer/counter
Shock Half-sine 30G per MIL-PRF-28800F; Bench handling
Vibration Random and sinusoidal according to MIL-PRF-28800F, Class 3
Accessories
  • 19" Rackmount kit for one CNT-9x, GPS-12x, GSG-5/6 or FDA-300 plus one Keysight ½*19" unit, side by side
  • 19" Rackmount kit for two CNT-9x, GPS-12x, GSG-5/6 or FDA-300, side by side
  • 19" Rackmount kit for one CNT-9x, GPS-12x, GSG-5/6 or FDA-300
  • Soft Carrying case for CNT-9x, GPS-12x, GSG-5/6 or FDA-300
  • Heavy duty Transport case for CNT-9x, GPS-12x, GSG-5/6 or FDA-300
Transit Drop Test According to MIL-PRF-28800F
Class MIL-PRF-28800F, Class 3
Calibration and Extended Warranty
  • Timebase aging measurement with report, per week. Available for CNT-9x, GPS-12x, GPS-88/89, 6688/6689 (NOTE This option includes NO Calibration, which must be ordered separately)
  • Calibration certificate w. Protocol, standard oscillator
  • Time-base Calibration certificate w. Protocol, OCXO oscillator, for CNT-9x or 6688
  • Accredited ISO 17025 time-base Calibration certificate w. protocol, OCXO oscillator, for CNT-90, CNT-91, CNT-90XL or 6688
  • Two years Extended warranty to a total of 4 years (without product registration, or 5 years (with product registration).
  • Service agreement 1 year. Includes yearly functional check, calibration of time-base oscillator, calibration of RF output level (GSG-5/6 only), priority repair and more.
Other Options
  • Internal Battery operation
  • Rear panel inputs for CNT-90 family (replaces front panel inputs).
  • GPIB-to-Ethernet Controller. Plugs into the GPIB port of the CNT-9x and enables remote control via Ethernet
  • Pulsed RF Software Option for CNT90XL. Provides following additional measurements: Frequency in burst, peak power in burst, pulse width, pulse repetition interval / frequency. Must be ordered together with the CNT-90XL and is not upgradable.
  • TimeView 2 Modulation Domain Analysis software for CNT-90, CNT90XL and CNT91/91R. Includes CD-ROM and activation key.
Built in Options
  • High-stability OCXO, oven oscillator, option for CNT-90-family
  • Ultra-stability OCXO, oven oscillator, option for CNT-90-family
Built in High Frequency Input C Options
  • 3 GHz input option for CNT-90/91
  • 8 GHz input option for CNT-90/91
  • 15 GHz input option for CNT-90/91
  • 20 GHz input option for CNT-90/91
EMC EN 61326 (1997); A1 (1998), increased test levels according to EN 50082-2, Group 1, Class B, CE
Storage Temperature -40°C to +71°C
Operating Temperature 0°C to +50°C
Humidity 5%-95% (10°C to 30°C)
5%-75% (30°C to 40°C)
5%-45% (40°C to 50°C)
Dimensions 210 x 90 x 395 mm
