GPS-12R

GPS-12R

Pendulum Instruments

GPS-controlled Rubidium Frequency Standard

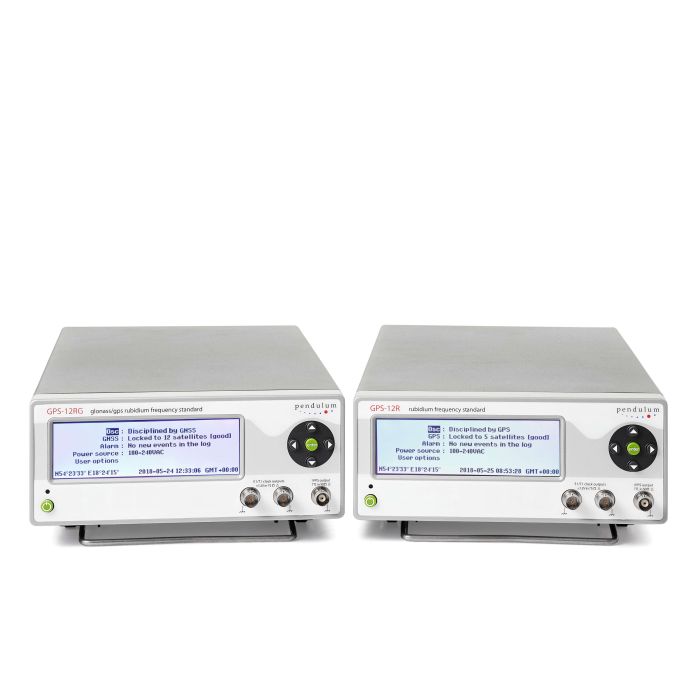

main product photo

The Pendulum GPS-12R and the top-of-line High-Stability GPS-12R/HS Portable Frequency Reference clocks are ultrastable, low-noise, GPS-disciplined Rubidium references, and ideal reference sources and calibrators for both telecom instrumentation and general lab equipment. Thanks to the internal battery option, you can transport near-Cesium frequency stability to the fi eld without losing accuracy.

Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Power Consumption Less than 60W during warm-up
Less than 35W during normal operation
Safety Compliant to CE: EN61010-1 2nd edition, Cat II, Pollution degree 2
Key Features
  • GPS-controlled Rubidium clock for near-Cesium stability
  • Internal battery option for transportation and mains-free field use
  • Switchable 1.544 MHz (T1) or 2.048 MHz (E1) front-panel outputs for telecom
  • 1 PPS/10 MHz square wave front-panel output
  • 1, 5 & 10 MHz optional lownoise sine outputs for general lab use (rear panel)
  • GPS-12 Monitor, Control and Monitoring SW
Accessories
  • Multi-GNSS L1 Outdoor Antenna, with L-bracket for vent pipe/pole mounting via metal straps (included)
  • GPS antenna cable 20m long, type N-N terminated
  • GPS antenna cable 50m long, type N-N terminated
  • GPS antenna cable 130m long, type N-N terminated
  • 19" Rackmount kit for one CNT-9x, GPS-12x, GSG-5/6 or FDA-300 plus one Keysight ½*19" unit, side by side
  • 19" Rackmount kit for two CNT-9x, GPS-12x, GSG-5/6 or FDA-300, side by side
  • 19" Rackmount kit for one CNT-9x, GPS-12x, GSG-5/6 or FDA-300
  • Soft Carrying case for CNT-9x, GPS-12x, GSG-5/6 or FDA-300
  • Heavy duty Transport case for CNT-9x, GPS-12x, GSG-5/6 or FDA-300
EMI Compliant to CE: EN61326-1 (1997), A1 to A3 (2003), EN55022B, EN50082-2
Calibration and Extended Warranty
  • Timebase aging measurement with report, per week. Available for CNT-9x, GPS-12x, GPS-88/89, 6688/6689 (NOTE This option includes NO Calibration, which must be ordered separately)
  • Calibration certificate w. Protocol, standard oscillator
  • Two years Extended warranty to a total of 4 years (without product registration, or 5 years (with product registration).
  • Service agreement 1 year. Includes yearly functional check, calibration of time-base oscillator, calibration of RF output level (GSG-5/6 only), priority repair and more
Built in Options
  • 3x 10 MHz and 1x 5 MHz sine wave outputs for GPS-12R/12RG
  • 0.1 / 1 / 5 / 10 MHz sine wave outputs (1Vrms) for GPS-12R/12RG
  • 2x 2.048 MHz and 2x 2.048 Mbits/s outputs (G.703)
  • External 1-pps disciplining input option to GPS-12x
  • GPS-12 Monitor. Monitoring and Control SW for GPS-12 series
Storage Temperature -40°C to +70°C
Operating Temperature 0°C to +50°C
Dimensions 210 x 108 x 395 mm
More Information
Attribute Value
Data Sheet Click here to view
