Cleverscope
250 MHz oscilloscope probe.

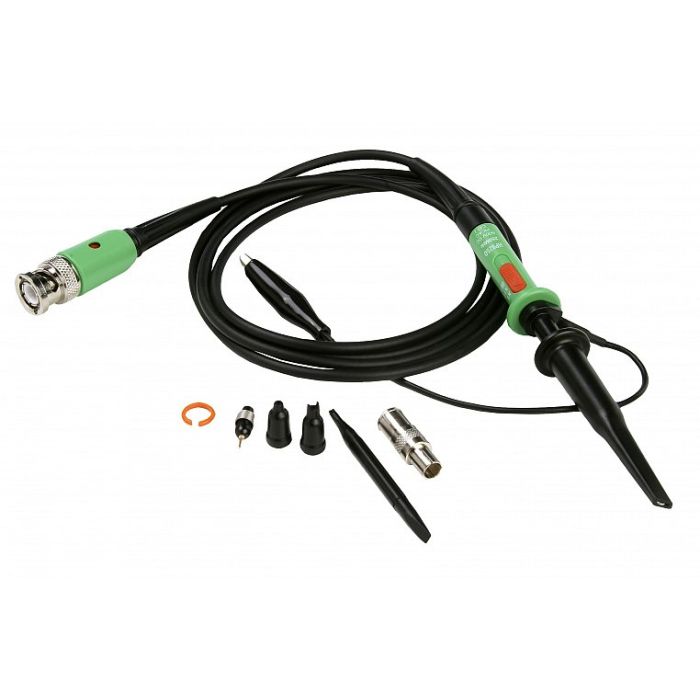

The CS1001 Analog probe is a switchable 1x /10x 250 MHz oscilloscope probe.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Safety | Meets IEC1010-1 Cat 1. |
| Bandwidth | DC to 6 MHz |
| Cable length (M) | 1.2 |
| Input Resistance | 1 MΩ |
| Input Capacitance | Approx 67 pF |
| Rise Time | 58 ns |
| Isolation Working Voltage | 600V DC incl peak AC , derated to 50V at 10MHz and 10V at 100 MHz. |
| Position X10 Attenuation Ratio | 0.417361111111111 |
| Position X10 Bandwidth | DC to 250 MHz |
| Position X10 Input Capacitance | Approx 17 pF |
| Position X10 Compensation Range | 10-35 pF |
| Probe Attenuation | 1:1 |
| Position X10 Rise Time | 2.3 ns |
| Position X10 Input Resistance | 10 MΩ |
| Included Accessories | Channel Identifier Clip, Sprung Hook, Ground lead, Insulating Tip, Adjusting Tool, Measuring Tip, Sprung Earth Tip. |
