CS1003

CS1003

CS1003

Cleverscope

50 MHz oscilloscope probe.

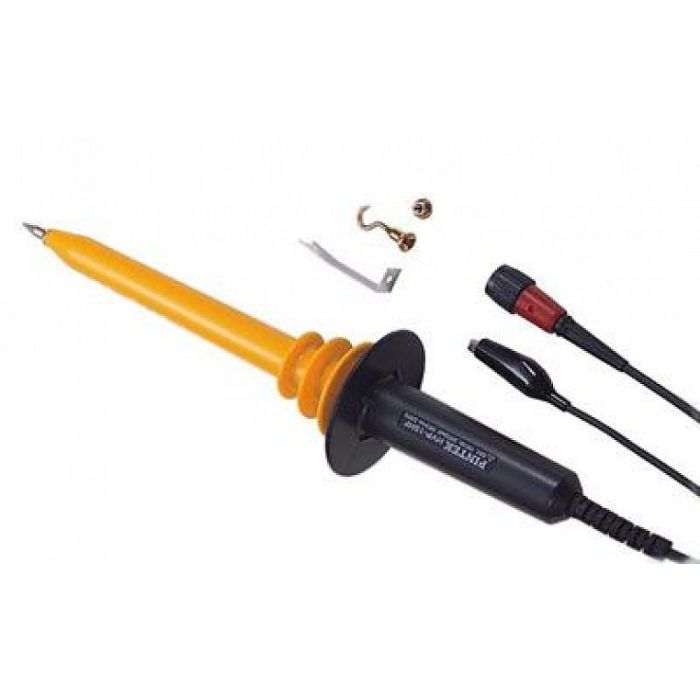

The CS1003 Analog probe is a 1000x 50 MHz oscilloscope probe.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Safety Meets IEC1010-1 Cat 1.
Bandwidth DC to 50 MHz
Cable length (M) 2.0000
Input Resistance 100MΩ
Input Capacitance Approx 3 pF
Rise Time <7 ns
Isolation Working Voltage DC+AC Pulse:18kV; Sine Wave:12kV rms
Compensation Range 5pF to 50pF
Probe Attenuation 1:1000
Included Accessories Channel Identifier Clip, Sprung Hook, Ground lead, Insulating Tip, Adjusting Tool, Measuring Tip, Sprung Earth Tip.
More Information
Attribute Value
Data Sheet Click here to view
