CS1008
CS1008
Cleverscope

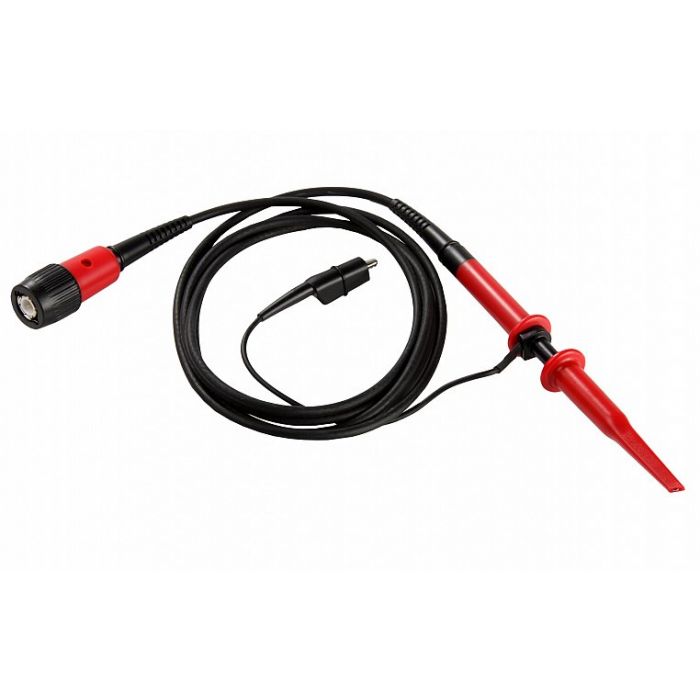

300 MHz oscilloscope probe.
The CS1008 Analog probe is a 200x 300 MHz oscilloscope probe.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Safety | Meets IEC1010-1 Cat II. |
| Bandwidth | DC to 300 MHz |
| Input Resistance | 100 MΩ |
| Input Capacitance | 5.5 pF |
| Isolation Working Voltage | Cat II:1.5kVrms, 2kV DC |
| Included Accessories | Channel Identifier Clip, Sprung Hook, Ground lead, Insulating Tip, Adjusting Tool, Measuring Tip, Sprung Earth Tip. |
| Cable length (M) | 1.3 |
| Rise Time | 1.4 ns |
| Probe Attenuation | 1:200 |
| Compensation Range | 10 to 35 pF |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
