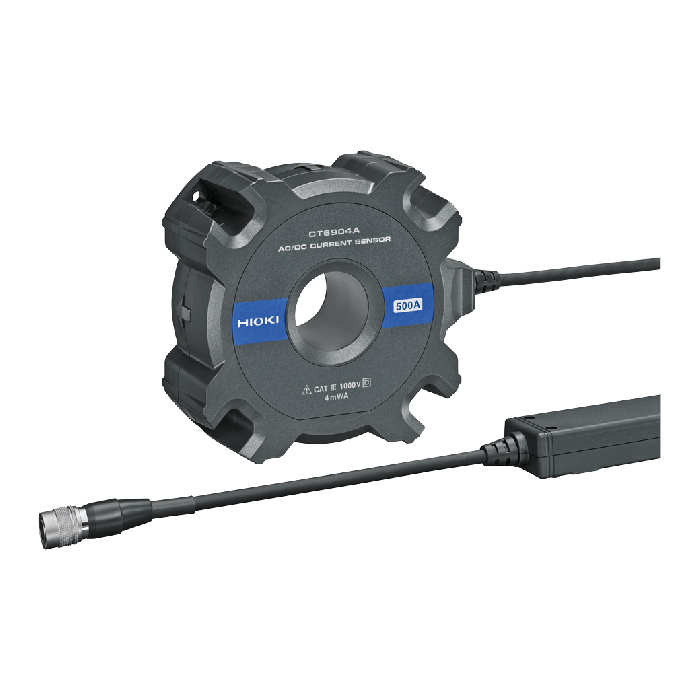

CT6904A / CT6904A-1

CT6904A / CT6904A-1

Hioki

AC/DC Current Sensor

Best-in-class Measurement Bandwidth with High Accuracy

Hioki's pass-through type AC/DC current sensors can be connected directly to Hioki Power Analyzers and Memory HiCorders. Also, it can be connected to Power Meters, Oscilloscopes, DMMs, etc. by using an optional sensor unit.
The CT6904A has a frequency bandwidth of DC to 4 MHz (Model CT6904A-1 is DC to 2 MHz) and a rated current of 500 A. It is used in research and development fields such as loss measurement of high-frequency reactors, wireless charging systems, and EV inverter motors.

Use with an instrument with a high input impedance of 1 MΩ or higher.

Key Features include

  • Combined accuracy with HIOKI power analyzer PW8001 and PW6001 is specified. For details of combined accuracy, refer to the instruction manual.
  • 500 A (rms) rated for measurement of large currents
  • CT6904A: DC to 4 MHz (±3 dB), CT6904A-1: DC to 2 MHz (±3 dB) wide measurement frequency range
  • ±5 ppm excellent linearity
  • 120 dB (100 kHz) high Common-Mode Rejection Ratio (CMRR)
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply Power suppled via the Power Analyzer PW8001, PW6001, PW3390, or Sensor Unit CT9555, CT9556, CT9557
Included Accessories Instruction Manual ×1, Carrying case ×1, Color labels (for channel identification) ×1, Operating Precautions ×1
Max Allowable Input Within the derating range, However, up to ±1000 A peak is allowable if within 20 ms. (design value)
Dimensions and Weight 139 mm (5.47 in) W × 120 mm (4.72 in) H × 52 mm (2.05 in) D CT6904A: 1.05 kg (37 oz), cable length 3 m (9.84 ft) CT6904A-1: 1.35 kg (47.6 oz), cable length 10 m (32.81 ft)
Basic Accuracy DC (Amplitude: ±0.025 % rdg. ±0.007 % f.s., No phase specification) 45 Hz ≤ f ≤ 65 Hz (Amplitude: ±0.02 % rdg. ±0.007 % f.s., Phase: ±0.08°)
Standards Safety IEC 61010 Type D
Rated Current 500 A AC/DC
Frequency Bandwidth Amplitude: DC to 4 MHz (CT6904A), DC to 2 MHz (CT6904A-1) Phase: DC to 1 MHz
Linearity ±5 ppm Typical (23°C (73°F))
Offset Voltage ±10 ppm Typical (23°C (73°F), no input)
Output Voltage Rate 4 mV / A rated (This device outputs AC+DC voltage via the Sensor Unit)
Core Diameter φ 32 mm (1.26 in)
Operating Temperature and Humidity -10°C to 50°C (14°F to 122°F) 80% RH or less (with no condensation)
Max. Rated Power 7 VA Max. (500 A/55 Hz measurement, with a power supply of ±12 V)
