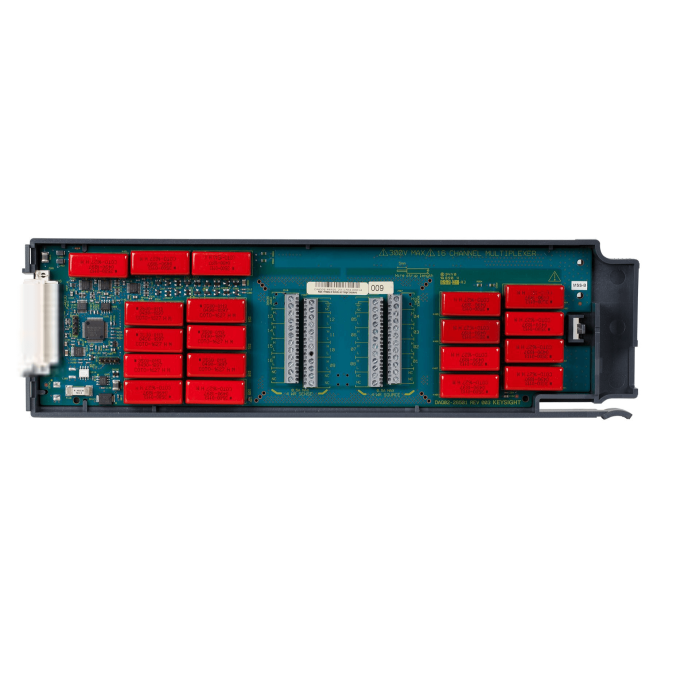

DAQM902A 16-Channel Multiplexer (2 / 4-Wire) Module for DAQ970A and DAQ973A
DAQM902A 16 Channel Multiplexer (2/4-wire) Module. Reed relays with high voltage switching of up to 300 V and scan speed up to 250 ch/s.
The Keysight DAQM902A module data acquisition system employs reed relays to achieve scan rates up to 250 channels-per-second. Use this module for high-throughput automated test applications as well as high-speed data logging and monitoring tasks.
Sixteen two-wire inputs switch up to 300 V. You can also mix two- and four-wire channels on the same module. Current measurements require user-provided shunt resistors.
Standard product includes:
- 1 DAQM902A, 16-channel multiplexer module
- 1 functional test certificate
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| For Use With | |
| Speed (ch/sec) | 250 (ch/sec) |
| Key Features |
|
| Channels | 16 |
| Bandwidth | 10_MHz |
| Additional Services | Built-in cold junction reference |
| Product Type | Multiplexer 2 / 4 Wire |
