DAQM908A
DAQM908A
Keysight Technologies

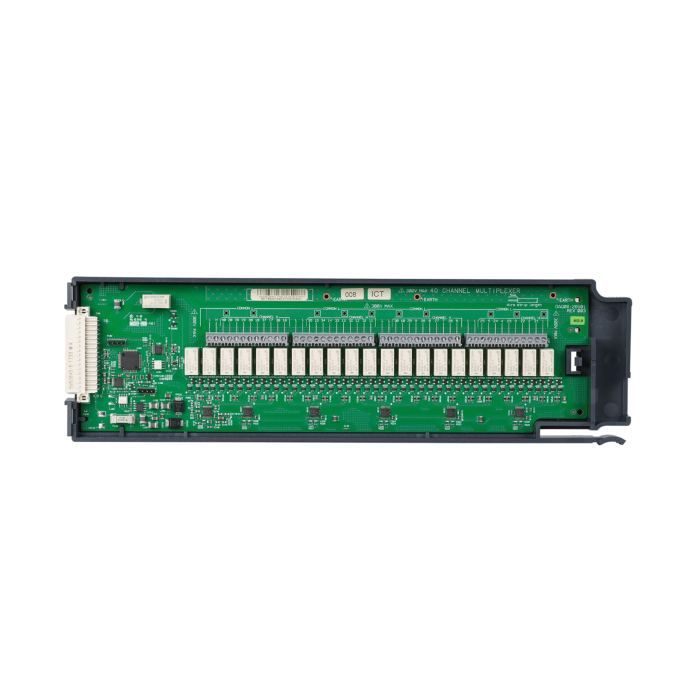

DAQM908A 40 Channel Single-Ended Multiplexer Module for DAQ970A and DAQ973A
40 Channel Single-Ended Multiplexer Module for DAQ970A and DAQ973A. Single-wire switching for common low applications with scan speed of up to 80 ch/s.
Use the Keysight DAQM908A module Data Acquisition System for the greatest density in common-low applications, such as battery test, component characterization, and benchtop testing. Each module switches 40 one-wire inputs. All two-wire internal measurements except current are supported. Use only 2-wire RTD and Thermistor sensors for temperature measurements with this module. The module low connection is isolated from earth and can float up to 300 V.
Standard Product Includes:
- 1 DAQM908A, 40-Channel Single-Ended Multiplexer Module
- 1 Functional Test Certificate
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| For Use With | |
| Speed (ch/sec) | 100 (ch/sec) |
| Key Features |
|
| Channels | 40 (1 wire) |
| Bandwidth | 10_MHz |
| Additional Services | No four-wire measurements |
| Product Type | Multiplexer Module |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
