DAQM905A
DAQM905A
Keysight Technologies

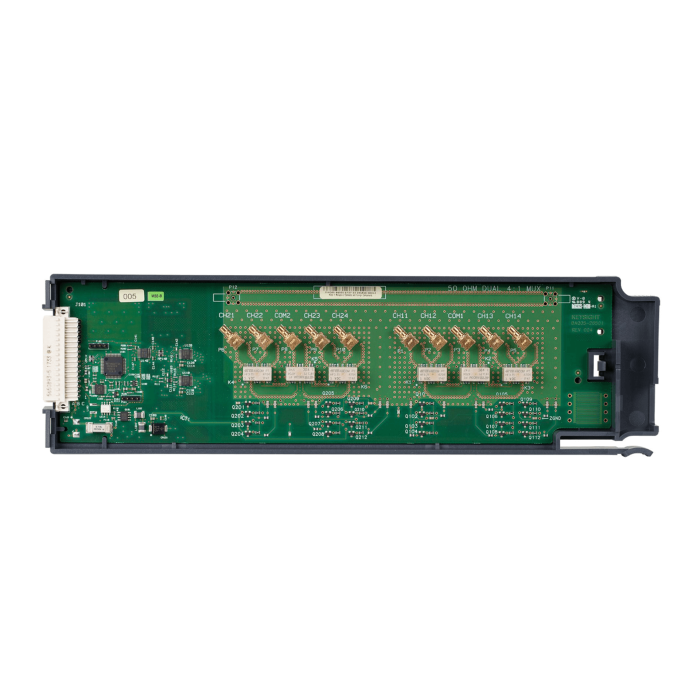

DAQM905A 2 GHz Dual 1:4 RF Mux, 50 Ohm Module for DAQ970A and DAQ973A
2 GHz Dual 1:4 RF Mux, 50 Ohm Module. Direct connection to SMB inputs with 2 GHz usable bandwidth.
The Keysight DAQM905A RF multiplexer module Data Acquisition System offers broadband switching capabilities for high-frequency and pulsed signals. Use it to route test signals between your device under test and your signal generator, oscilloscope, spectrum analyzer, or other instrumentation.
The RF multiplexers are arranged as two independent 1 x 4 multiplexers, each with a common shield and a switched center conductor. Connections can be made directly to SMB inputs with 2 GHz usable bandwidth, or to the BNC-to-SMB adapters provided with 1 GHz bandwidth. Multiple banks may be cascaded together for applications requiring even larger topologies-- create a stubless 16:1 multiplexer in a single frame.
Standard Product Includes:
- 1 DAQM905A, Dual 4-Channel 50 Ohm RF Multiplexer Module
- 1 Functional Test Certificate
- 10 Cables, 50 Ohm (SMB to BNC)
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| For Use With | |
| Speed (ch/sec) | 60 (ch/sec) |
| Key Features |
|
| Channels | Dual 1x4 (50Ω) |
| Bandwidth | 2 GHz |
| Additional Services | 1 GHz bandwidth through BNC-to-SMB adapter cable |
| Product Type | RF MUX Module |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
