R08IWK8M-RTU1ML

R08IWK8M-RTU1ML

R08IWK8M-RTU1ML

Winmate

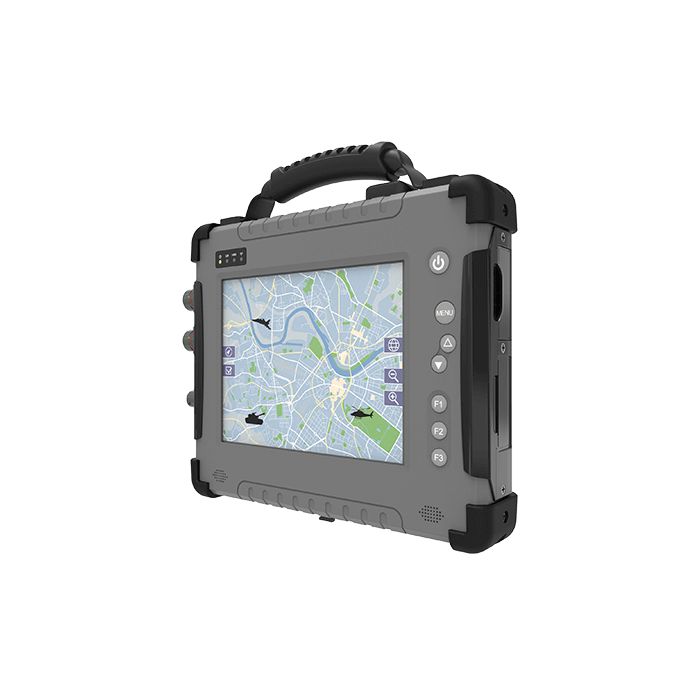

8.4" Intel® Core i5 Military Ultra Rugged Tablet PC

The Military Ultra Rugged Tablets are built to survive in the most demanding conditions and harshest environments.

Tailored for military applications and packed in an ultra-rugged housing with up to IP65 rating passed the MIL-STD-810 test and withstand the rigors of outdoor environments - water, dust, weather changes, strong vibration and drop up to 4 ft. - that may be necessary for military personal.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Size 8.4 inches
Power Rating 9-36V DC in (MIL-DTL-38999/1 connector)
Operating System
  • Windows 10 IoT Enterprise 64bit
  • Linux Ubuntu 18.04 (Optional)
Resolution 800x600
Processor Intel® Core i5-8265U Whiskey Lake, 1.6 GHz (Turbo up to 3.90 GHz)
Storage
  • 1 x 128GB M.2 SSD
  • 256GB M.2 SSD (Optional)
  • 512GB M.2 SSD (Optional)
Security TPM 2.0
Drop Rating MIL-STD-810G Method 516.6, 4 ft
Contrast Ratio 600:1
Shock MIL-STD-810G Method 516.6 Procedure I
Vibration MIL-STD-810G Method 514.6 Procedure I
IP Rating IP54
LAN 1 x RJ45-10/100/1000 Mbps LAN(MIL-STD-38999 connector)
Bluetooth Support
WLAN 802.11 a/b/g/n/ac
Certifications CE, FCC
Serial Port
  • 1 x RS232/RS422
  • Serial COM Port (MIL-STD-38999 connector)
USB
  • 2 x USB 3.0
  • 1 x USB 2.0 (MIL-STD-38999 connector)
Micro SD Card Slot 1.0000
Cooling system Fanless Design
Front Camera 2MP Front Camera (Optional)
Rear Camera 5MP Rear Camera with auto-focus (Optional)
Enclosure Aluminum Magnesium Alloy Housing with Protective Rubber
Indicator 4x LED Indicator for Power, Battery, SSD, RF status
Accessory
  • Adapter and Power Cord
  • Standard Battery
  • Quick Start Guide
  • Manual & Driver CD
  • Touch Stylus
  • MIL-STD-38999 cable for External connecting
Button
  • 1 x Power Key
  • 1 x Menu Key
  • 3 x Function Key
  • 2 x Brightness Control Key
Operating Humidity 10% to 90% RH, non-condensing
Touch / Glass Resistive Touch Screen
View Angles 75,75,60,70
Panel Brightness 600 nits
WWAN 4G/ LTE or 3G (Optional)
GNSS
  • Supports GPS
  • GLONASS, Galileo, BeiDou (Optional)
SIM Card Slot 1 x Micro SIM Card Slot
Optional Accessory
  • Adjustable Kickstand (Optional)
  • Multi-functional Desktop Docking station (Optional)
  • Vehicle Mounting Charger Kit (Optional)
  • Car Power Charger (Optional)
  • Hand Strap (Optional)
  • Shoulder Strap (Optional)
  • Soft Shell Case (Optional)
  • Carry Bag (Optional)
Storage Temperature -30°C to 70°C (-22°F to 158°F)
Operating Temperature
  • -20°C to 60°C (AC mode)
  • -10°C to 50°C (Battery mode)
Battery 11.1V, 5200mAh Lithium-Ion Battery (6cells)
Memory
  • 4GB SODIMM DDR4-2400
  • 8GB SODIMM DDR4-2400 (Optional)
  • 16GB SODIMM DDR4-2400 (Optional)
Dimensions 266 x 222 x 50 mm
More Information
Attribute Value
Data Sheet Click here to view
