DPO714AX
DPO714AX
Tektronix

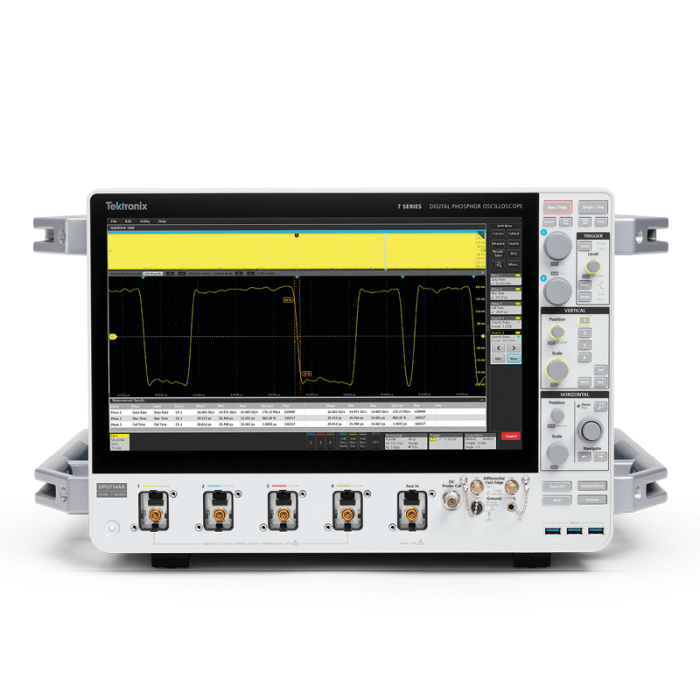

7 Series Digital Phosphor Oscilloscope
7 Series DPO with 125 GS/S sample rate and 500 M record length
The Tektronix 7 Series DPO delivers unparalleled signal fidelity, high ENOB, low jitter, fast measurement throughput, and an award-winning user interface making it ideal for meeting the evolving needs of high-speed serial, high-energy physics, and key RF applications.
Bandwidth ranging from 8-25 GHz and compatible with TekConnectTM probes.
Key Features
- Available bandwidths: 8 GHz, 10 GHz, 13 GHz, 16 GHz, 20 GHz, 25 GHz (customer upgradable) 4 TekConnect® input channels and one TekConnect Aux In each with TCA292D 50 Ω 2.92 mm input adapter
- Sample rate 125 GS/s on all 4 channels
- 10-bit ADC with highest ENOB and lowest random noise
- Precision timebase with low intrinsic jitter
- Record length of 500 Mpts standard. 1 or 2 Gpts optional
- P7700 and P7600 Series TriMode™ probe compatible
- 15.6 inch high-definition touch screen display (1920x1080 resolution)
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
In-House or Virtual Product Demos' Available
If you’d like a product demo or want to learn more about the Tektronix MP5000 or 7 Series DPO, our team is available to meet with you in person or online to answer your technical questions and provide expert support and guidance.
| Attribute | Value |
|---|---|
| Sample Rate | 125 GS/s |
| Record Length | Record length of 500 Mpts standard. 1 or 2 Gpts optional |
| Whats Included |
Qty 5 - TCA292D adapters |
| Dimensions |
22.1 in / 560 mm (with handles) |
| Bandwidth Option |
8 GHz |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
