Name: TBS2202B
Brand: Tektronix
SKU: TBS2202B
Price: 1938.00 GBP
Availability: OutOfStock

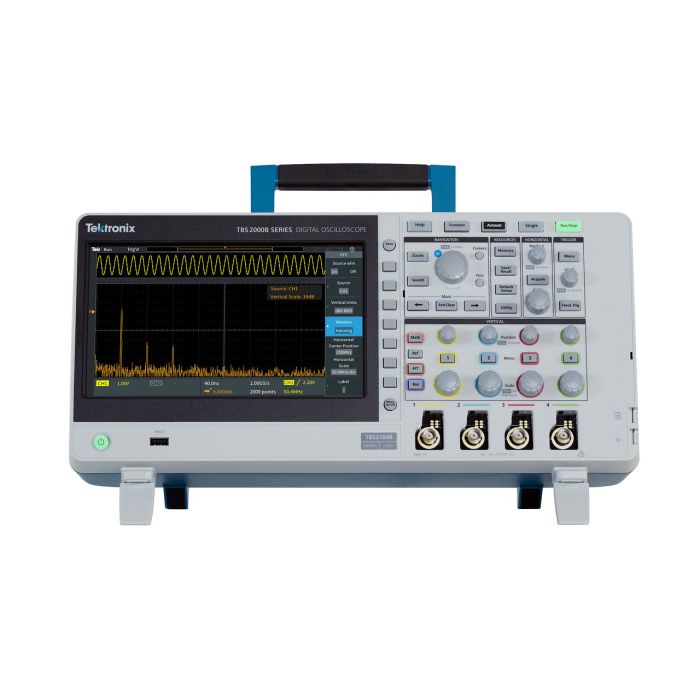

TBS2202B

Tektronix

200 MHz bandwidth, 2 GS/s sample rate, 2-channel digital storage oscilloscope, 5 Mpts record length, 5 year warranty

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The TBS2000B Series of Oscilloscopes with a 9-inch WVGA display, 5 million point record length and 2 GS/s sample rate, capture and display significantly more signal to help you debug and validate the designs faster. Easily and confidently analyze your signals with new on-waveform cursor readouts and 32 automated measurements, each with informative tips. The TekVPI® probe interface supports traditional passive BNC probes, but also enables wide application coverage with the latest active voltage probes and current probes.

Contact our team for stock availability and product options.

Price £1,938.00

Request a quote

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

Find out more

[email protected]

+44 330 313 3220

Specifications

More Information
Attribute	Value
Manufacturer Product Family	TBS2000B Digital Storage Oscilloscope
Key Features	Key performance specifications 2 and 4 analogue channel models 200 MHz, 100 MHz, and 70 MHz bandwidth models up to 2 GS/s sampling rate 5 M record length on all channels 5 year warranty Key features 9-inch WVGA color display with 15 horizontal grids shows 50% more signal TekVPI probe interface supports active, differential, and current probes with automatic scaling and units New front-end design enables more accurate measurements 32 automated measurements, and FFT function for quick waveform analysis Search and Mark features for easy identification of events that occur in the acquired waveform HelpEverywhere® provides helpful on-screen tips for new users Built-in Scope Intro handbook provides operating instructions and oscilloscope fundamentals The instrument user interface and the front panel overlay is translated into 10 languages Connectivity USB 2.0 host port on the front panel for quick and easy data storage USB 2.0 device port on rear panel for easy connection to a PC 10/100BASE-T Ethernet port for remote control over LAN Wi-Fi interface provides wireless communications capability support 1 Education Courseware function presents lab exercise guidance on the display Autoset, Cursors, and Automated measurements can be disabled to help educators to teach basic concepts to students
Sample Rate	Up to 2 GS/s
Record Length	5 M points
Bandwidth	200 MHz
Channels	2
Series	TBS2000B
