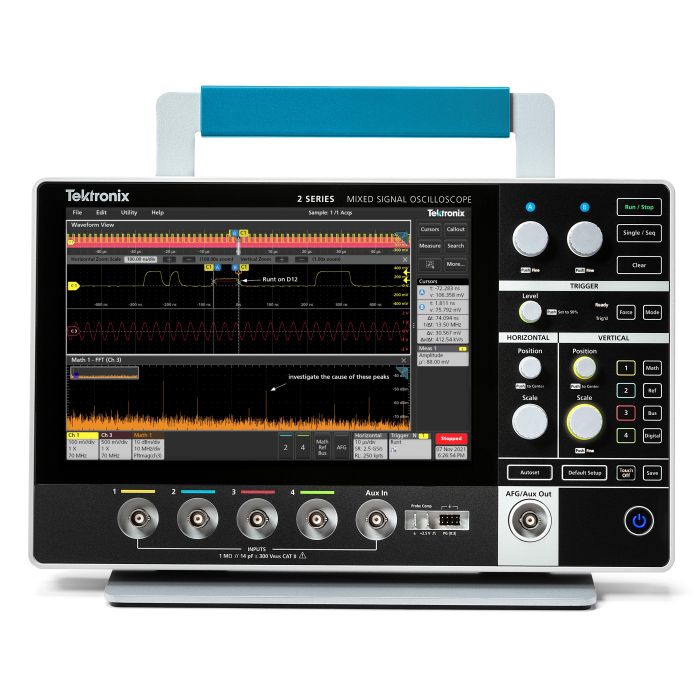

MSO24 2-BW-70

Tektronix

Thin, portable, and lightweight 2 Series mixed signal oscilloscope offers bandwidth of 70 MHz and 2.5 GS/s max sample rate. 4 analog channels.

Skip to the beginning of the images gallery

The 2 series MSO unlocks more space on your bench without compromising performance.
The thin, portable, and lightweight 2 Series MSO offers bandwidths from 70 MHz to 500 MHz and 2.5 GS/s max sample rate.
Available with either two or four channels, the 2 Series MSO features a capacitive touchscreen, and can be equipped with several options incl. 16-channel MSO, 50 MHz function generator, and 4-bit pattern generator.
An optional battery pack lets you take it easily from your bench to the field or wherever your measurements take you.

•Thin, Lightweight Design	•Software Enabled
•Battery Powered	•Serial Decode
•Modern Touchscreen Display	•All-in-One Convenience
•Full Featured Analysis	•VESA Mount and Accessories

Contact our team for stock availability and product options.

Price £2,180.00

Request a quote

Specifications

More Information
Attribute	Value
Manufacturer Product Family	2 series MSO
Key Features	Bandwidth: 70MHz/100MHz/200MHz/350MHz/500MHz Sampling Rate: 2.5 GS/s Half channels and 1.25 GS/s All channels Record Length: 10 M points per channel Display Type: • 10.1-inch TFT color • WXGA (1280 x 800) resolution • Capacitive (multi-touch) touchscreen Resolution: 8 bit Ports: 2 USB Hot, 1 USB Device, 1 Ethernet Standard Warranty: 1 year Rackmountable (5U)
Sample Rate	2.5 GS/s
Record Length	10 M Points
Bandwidth	70 MHz to 500 MHz
Channels	4
Whats Included	One TPP0200 200 MHz, 10x voltage probe per channel Instrument stand Installation and safety manual (translated in English, Japanese, and Simplified Chinese) Embedded help External power supply Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration One-year warranty covering all parts and labor cost on the instrument and the included probes and probes One-year software maintenance that provides access to new firmware releases with updates
Dimensions	Instrument only Height 210 mm (8.26 in) Width 344 mm (13.54 in) Depth 40.4 mm (1.59 in) Instrument with battery pack Height 210 mm (8.26 in) Width 344 mm (13.54 in) Depth 78 mm (3.07 in)
