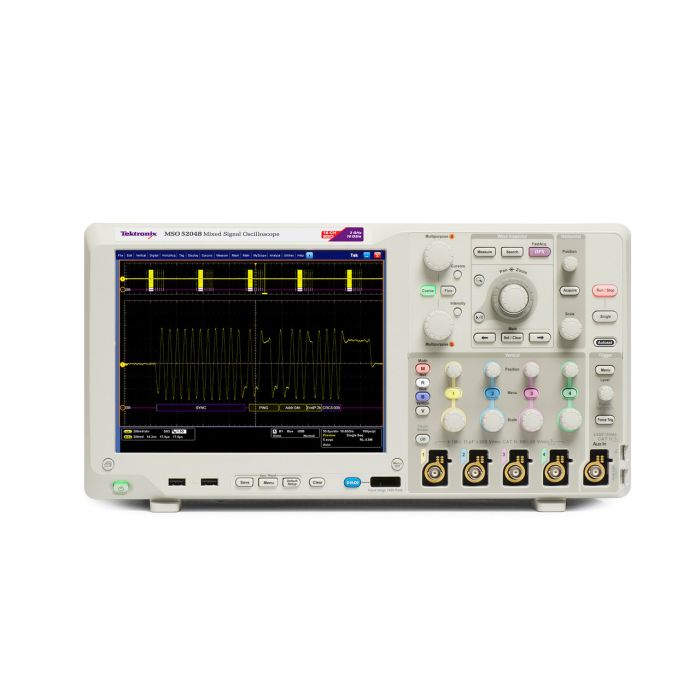

MSO5054B

Key performance specifications

• 500 MHz bandwidth model
• Up to 10 GS/s real-time sample rate on one or two channels and up to 5 GS/s on all four channels
• Up to 250 Megapoint record length with MultiView zoom™
• >250,000 wfms/s maximum waveform capture rate with FastAcq®acquisition
• FastFrame™ segmented memory acquisition mode with up to 290,000 segments and >310,000 waveforms per second capture rate
• Standard 10 MΩ passive voltage probes with less than 4 pF capacitive loading and 500 MHz or 1 GHz analogue bandwidth
• >11 bits vertical resolution using HiRes sampling
• User-selectable bandwidth limit and DSP filters for lower noise and better measurement accuracy

Key analysis features

• Wave inspector® controls provide easy navigation and automated search of waveform data
• Suite of advanced triggers, with standard Visual Trigger and Search
• 53 automated measurements, selectable filtering, waveform math and FFT analysis
• Waveform histogram, eye diagram, TIE (jitter/timing) measurement and analysis
• User-definable math using MATLAB, Visual Studio and Excel
• Optional analysis for memory, advanced jitter, serial data, power and Wideband RF

Key protocol features

• Trigger and decode options for mid-speed (100 Mb/s to 1 Gb/s) buses
• Trigger and decode options for low-speed (<10 Mb/s) buses
• Compliance test options for USB2.0, Ethernet, USB power, MOST, and Automotive Ethernet
• Mask testing on communication, computing and video standards
