TBS1102C

TBS1102C

Tektronix

Digital Storage Oscilloscope: 100 MHz bandwidth, 1 GS/s sample rate, 2 Channel

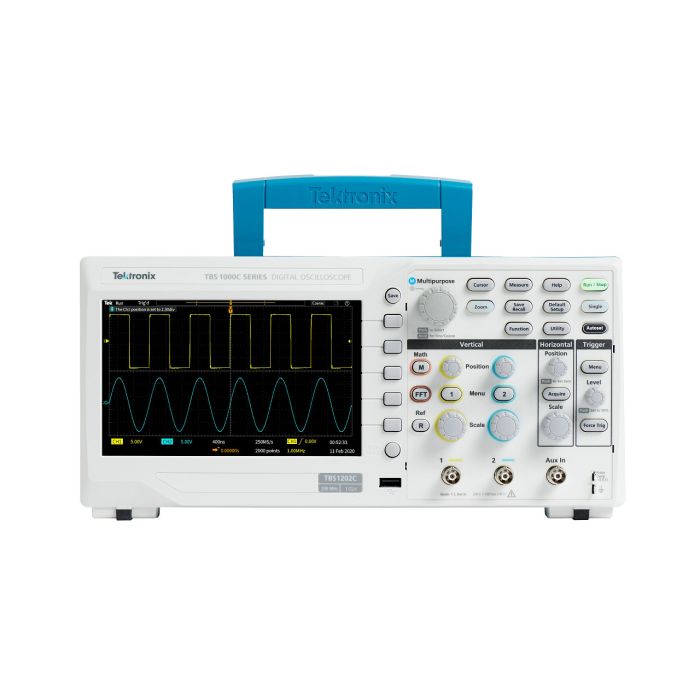

main product photo

The TBS1000C Series Digital Storage Oscilloscope offers affordable performance in a compact design. It is designed to meet the needs of today's educational institutions, embedded design engineers, and maker community. The instrument includes a 7-inch WVGA color display with up to 1 GS/s sample rate, bandwidths from 50 MHz to 200 MHz and a five-year warranty.

The instrument comes with an innovative courseware system that integrates the lab exercises with step-by-step instructions for use, by the students. HelpEverywhere® system provides useful tips and hints throughout the user interface, to make the instrument more approachable to a new user.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

Find out more
[email protected]
+44 330 313 3220
More Information
Attribute Value
Manufacturer Product Family TBS1000C Digital Storage Oscilloscope
Key Features

Key performance specifications

  • 200 MHz, 100 MHz, 70 MHz, and 50 MHz bandwidth models
  • 2-channel models
  • 1 GS/s sample rate on all channels
  • 20k point record length on all channels
  • Advanced triggers include pulse, runt, and line triggers
  • Five-year warranty
  • 7-inch WVGA color display with 15 horizontal divisions that shows 50% more signal
  • 32 automated measurements
  • Dual window FFT with simultaneous time and frequency domain views
  • Trigger frequency counter
  • Pan and Zoom capability
  • Multi-language user interface with support for 10 languages in the user interface and front panel overlay
  • Small footprint and light weight
  • Fanless design contributes to low noise operation

Connectivity

  • USB 2.0 host port on the front panel for quick and easy data storage.
  • USB 2.0 device port on rear panel to connect to a PC and remotely control the instrument.

Education

  • HelpEverywhere® provides helpful on-screen tips for users
  • Built-in oscilloscope handbook provides operating instructions and oscilloscope fundamentals
  • Integrated courseware feature provides lab exercise guidance on the display
  • Autoset, Cursors, and Automated measurements can be disabled to help educators to teach basic concepts to students
Sample Rate 1 GS/s
Record Length 20 K points
Bandwidth 100 MHz
Channels 2
Series TBS1000C
More Information
Attribute Value
Data Sheet Click here to view
