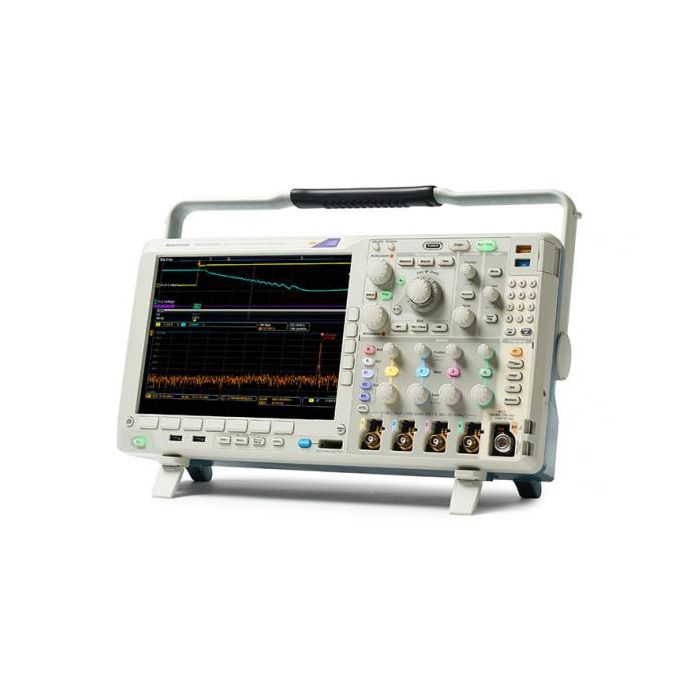

Tektronix MDO4024C Oscilloscope | APC Technology Group

MDO4024C

MDO4024C

Tektronix

Mixed Domain Oscilloscope; (4) 200 MHz analogue channels, 20M record length, 3-year warranty

Customisable and fully upgradeable 6-in-1 integrated oscilloscope with synchronised insights into analogue, digital, and RF signals

Introducing the world's highest performance 6-in-1 integrated oscilloscope that includes a spectrum analyser, arbitrary/function generator, logic analyser, protocol analyser and DVM / frequency counter. The MDO4000C Series has the performance you need to solve the toughest embedded design challenges quickly and efficiently.

When configured with an integrated spectrum analyser, it is the only instrument that provides simultaneous and synchronised acquisition of analogue, digital and spectrum, ideal for incorporating wireless communications (IoT) and EMI troubleshooting.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

More Information
Attribute Value
Manufacturer Product Family MDO4000C Mixed Domain Oscilloscope
Key Features
  • 4 analogue channels
  • 200 MHz bandwidth model
  • Bandwidth is upgradeable (up to 1 GHz)
  • Up to 5 GS/s sample rate
  • 20 M record length on all channels
  • > 340,000 wfm/s maximum waveform capture rate
  • Standard passive voltage probes with 3.9 pF capacitive loading and 1 GHz or 500 MHz analogue bandwidth
Sample Rate 2.5 GS/s
Record Length 20 M points
Bandwidth 200 MHz
Channels 4
Series MDO4000C
More Information
Attribute Value
Applications
  • Embedded design
  • Power design
  • EMI troubleshooting
  • Wireless troubleshooting
  • Education
  • Manufacturing Test and Troubleshooting
More Information
Attribute Value
Data Sheet Click here to view
