DPO71604C

DPO71604C

Tektronix

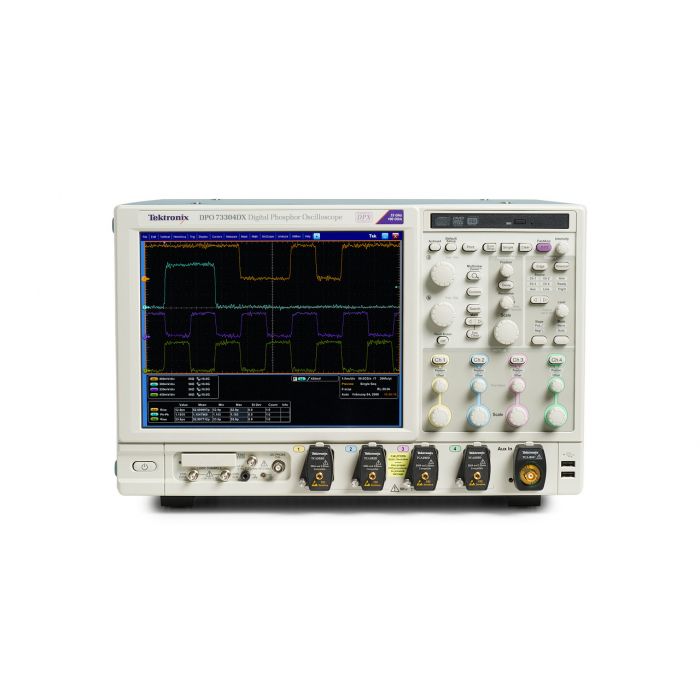

16 GHz Digital Phosphor Oscilloscope; 4 analogue channels

The MSO/DPO70000 is one of the most advanced oscilloscopes in its class—enabling today's engineer to see signals better with minimal noise, debug signal anomalies faster and utilise measurement and analysis tools for automated compliance testing and other verifications. In addition, the MSO/DPO70000 is perfect for analogue/digital design and debug, data communications and high-speed serial communications. See how you can use the MSO/DPO70000 for your next project to find and analyze a wide range of mixed-signal anomalies.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

More Information
Attribute Value
Manufacturer Product Family MSO / DPO70000 Mixed Signal Oscilloscope
Key Features

Key performance specifications

  • Up to 33 GHz analogue bandwidth and rise time as fast as 9 ps. Enables measurement on the latest high-speed serial standards
  • True 33 GHz Real-time analogue Bandwidth on 2 Channels with 33 GHz models
  • Industry-leading sample rate and timing resolution
    • 100 GS/s on 2 Channels
  • Four-channel Simultaneous Performance
    • Up to 23 GHz Bandwidth
    • Up to 50 GS/s Real-time Sample Rate
    • Up to 500 Megasample Record Length with MultiView Zoom™ for quick navigation
    • Fastest Waveform Capture Rate with >300,000 wfms/s maximum per channel
  • Unique iCapture® capability enables viewing analogue characteristics of digital channels with single probe connection
  • 6.25 Gb/s Real-time Serial Trigger – Assures triggering on the first instance of a specified NRZ or 8b/10b pattern to allow isolation of pattern-dependent effects
  • Application Support for High-speed Serial Industry Standards, wideband RF, Power supplies, and memory – Enables standardspecific certification, measurement automation, and ease of use

Key features

  • Superior signal integrity and excellent signal-to-noise ratio – observe the truest representation of your waveform
  • Pinpoint® triggering – minimize time spent trying to acquire problem signals for efficient troubleshooting and shortened debug time
  • Visual Trigger – precisely qualify triggers and find unique events in complex waveforms
  • Search and Mark – provides waveform or serial bus pattern matching and software triggers for signals of interest
  • Automated Serial Analysis options for PCI Express, 8b/10b encoded serial data, I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, USB 2.0, HSIC, MIL-STD-1553B, and MIPI® C-PHY, D-PHY and M-PHY
  • P7700, P7600, and P7500 TriMode™ probing system – perfectly matched signal connectivity, with calibration to probe tip

Connectivity

  • USB 2.0 host port on both the front panel and rear panel for quick and easy data storage, printing, and connecting a USB keyboard
  • Integrated 10/100 Ethernet port for network connection and Video Out port to export the oscilloscope display to a monitor or projector
Sample Rate 50 GS/s - 100 GS/s
Record Length 31.25 M - 250 M points
Bandwidth 16 GHz
Channels 4
More Information
Attribute Value
Data Sheet Click here to view
