Tektronix MSO58LP Oscilloscope | APC Technology Group

MSO58LP

MSO58LP

Tektronix

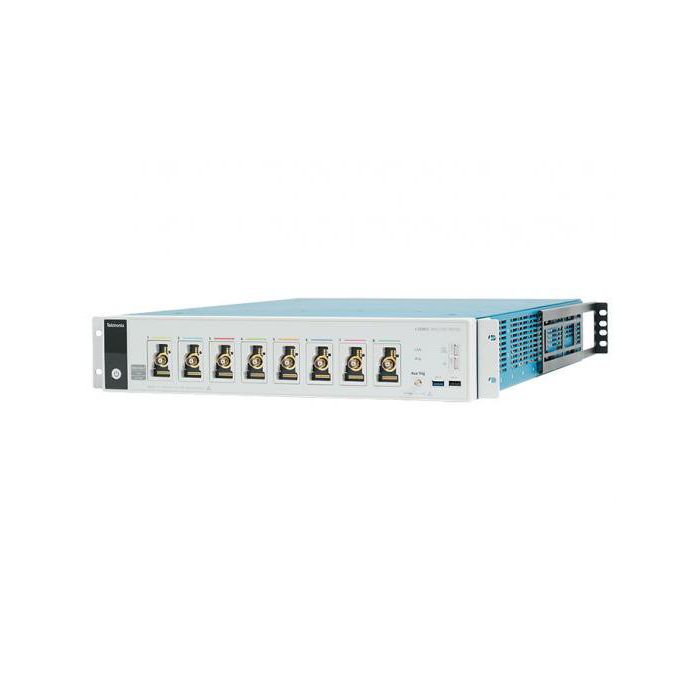

Low Profile Mixed Signal Oscilloscope, 1 GHz bandwidth, (8) FlexChannels with 125M record length, 3-year warranty

The 5 Series MSO Low Profile is based on the 5 Series MSO benchtop platform. The benchtop 5 Series MSO has a remarkably innovative pinch-swipe-zoom touchscreen user interface, the industry's largest high-definition display, and 4, 6, or 8 FlexChannel® inputs that let you measure a single analogue channel waveform, a spectral view of the analogue input, simultaneous analogue and spectral views with independent acquisition controls for each domain, or eight digital logic inputs (with TLP058 logic probe).

Like the benchtop 5 Series MSO, the low profile instrument offers FlexChannel inputs, an optional arbitrary/function generator output, and a built-in digital voltmeter and trigger frequency counter. And, if you plug in an external touch-capable monitor you can experience the same revolutionary pinch-swipe-zoom user experience as if you were in front of the benchtop 5 Series MSO.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

More Information
Attribute Value
Manufacturer Product Family 5 Series MSO Low Profile
Key Features

Input channels

  • 8 FlexChannel® inputs
  • Each FlexChannel provides:
    • One analogue signal that can be displayed as a waveform view, a spectral view, or both simultaneously
    • Eight digital logic inputs with TLP058 logic probe

Bandwidth (all analogue channels)

  • 1 GHz

Sample rate (all analogue / digital channels)

  • Real-time: 6.25 GS/s
  • Interpolated: 500 GS/s

Record length (all analogue / digital channels)

  • 125 Mpoints (std.)
  • 250, 500 Mpoints (optional)

Waveform capture rate

  • >500,000 waveforms/s

Vertical resolution

  • 12-bit ADC
  • Up to 16-bits in High Res mode
  • 7.6 ENOB at 1 GHz

Standard trigger types

  • Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger, Video (optional), RF vs. Time (optional)
  • Auxiliary Trigger ≤5 VRMS, 50Ω, 200 MHz (Edge Trigger only)

Standard analysis

  • Measurements: 36
  • Spectrum View: Frequency-domain analysis with independent controls for frequency and time domains RF vs. time traces (magnitude, frequency, phase)
  • FastFrameTM: Segmented memory acquisition mode with maximum trigger rate >5,000,000 waveforms per second
  • Plots: Time Trend, Histogram, Spectrum and Phase Noise
  • Math: Basic waveform arithmetic, FFT, and advanced equation editor
  • Search: Search on any trigger criteria
  • Jitter: TIE and Phase Noise
Sample Rate 6.25 GS/s
Record Length 125 M - 500 M points
Bandwidth 1 GHz
Channels 8
Series 5 Series MSO
More Information
Attribute Value
Data Sheet Click here to view
