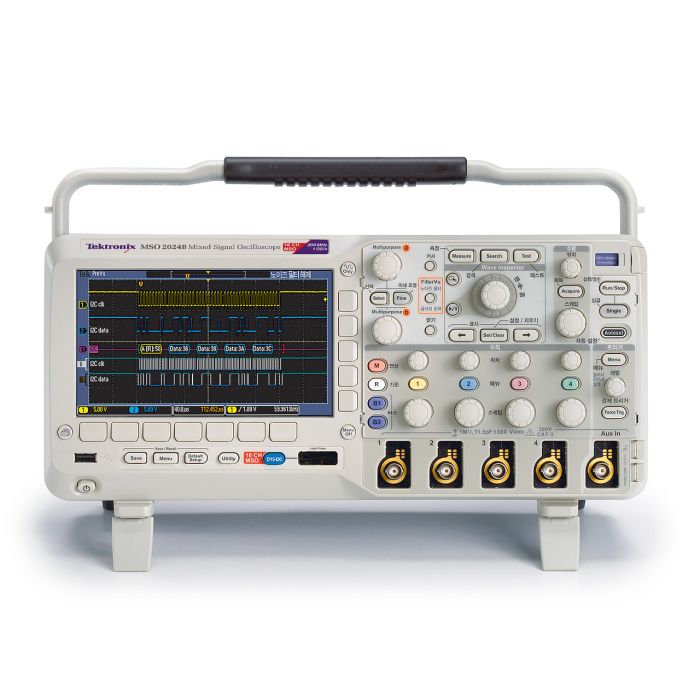

DPO2012B

Key performance specifications

• 200, 100, 70 MHz bandwidth models
• 2 and 4 analogue channel models
• 16 digital channels (MSO series)
• 1 GS/s sample rate on all channels
• 1 megapoint record length on all channels
• 5,000 wfm/s maximum waveform capture rate
• Suite of advanced triggers

Key features

• Wave Inspector® controls provide easy navigation and automated search of waveform data
• FilterVu™ variable low-pass filter allows for removal of unwanted signal noise while still capturing high-frequency events
• 29 automated measurements, and FFT analysis for simplified waveform analysis
• TekVPI® probe interface supports active, differential, and current probes for automatic scaling and units
• 7 in. (180 mm) wide-screen TFT-LCD color display
• Small footprint and lightweight - only 5.3 in. (134 mm) deep and 7 lb. 14 oz. (3.6 kg)
• Five-year warranty

Connectivity

• USB 2.0 host port on the front panel for quick and easy data storage
• USB 2.0 device port on rear panel for easy connection to a PC or direct printing to a PictBridge®-compatible printer
• Optional 10/100 Ethernet port for network connection and video-out port to export the oscilloscope display to a monitor or projector

Optional serial triggering and analysis

• Automated serial triggering, decode, and search options for I2C, SPI, CAN, LIN, and RS-232/422/485/UART
