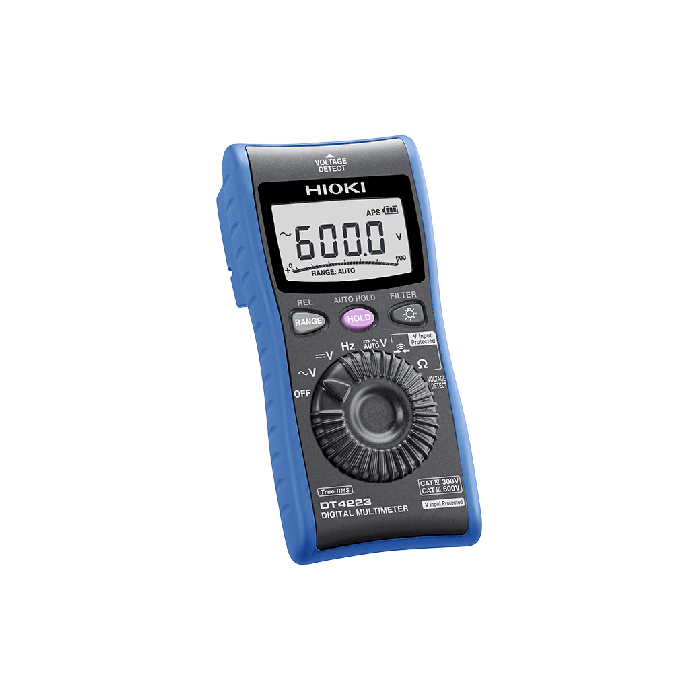

DT4223
DT4223
Hioki
Digital Multimeter
Pocket DMM that Prevents False Circuit Breaker Trips using Proprietary Technology
The Hioki DT4200 Digital Multimeter Series consists of a diverse array of meters ranging from professional to industrial to pocket meters, delivering a super fast response rate and safety features that take electrical testing to a higher level. The Hioki DT4223 is a pocket-sized digital multimeter featuring an innovating circuit-breaker false trip prevention function to enhance testing safety and a built-in voltage detector, ideal for electrical inspections.
CAT IV 300 V, CAT III 600 V
Key Features
- Achieving a high level of safety in a compact body and lightweight design
- Circuit breaker false trip prevention function helps avoid accidents resulting from breakers that mistakenly trip due to incorrect input
- Resistance measurement and voltage detection function (DT4223)
- Robust design capable of withstanding a drop from a height of 1 m
- Test leads conveniently wrap around the back
- ±0.5% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics
- Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)
- Broad -10°C (14°F) to 65°C (149°F) operating temperature range
- Display backlight
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Supply | LR03 alkaline batteries ×1, Continuous use: 35 hours (backlight OFF) |
| Dimensions and Weight | 72 mm (2.83 in)W × 149 mm (5.87 in)H × 38 mm (1.50 in)D, 190 g (6.7 oz) (including batteries and holster) |
| Other Functions | Circuit-breaker false trip prevention function, filter function, display value hold, relative value display, auto-power save |
| Accessories | Test lead DT4911 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×1 |
| DC Voltage range | 600.0 mV to 600.0 V, 4 ranges, Basic accuracy: ±0.5 % rdg. ±5 dgt. |
| AC Voltage range | 6.000 V to 600.0 V, 3 ranges, Frequency characteristics: 40 Hz - 1 kHz Basic accuracy 40 - 500 Hz: ±1.0 % rdg. ±3 dgt. (True RMS, crest factor 3) |
| Resistance range (2-terminals) | 600.0 Ω to 60.00 MΩ, 6 ranges Basic accuracy: ±0.9 % rdg. ±5 dgt. |
| Frequency Range | AC V measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges Basic accuracy: ±0.1 % rdg. ±2 dgt. |
| Continuity Test | Continuity threshold [ON]: 25 Ω or less (buzzer sound), [OFF]: 245 Ω or more, Response time: 0.5 ms or more |
| Voltage Detection | 80 V to 600 V AC |
| Display Refresh Rates | 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 times/s) |
